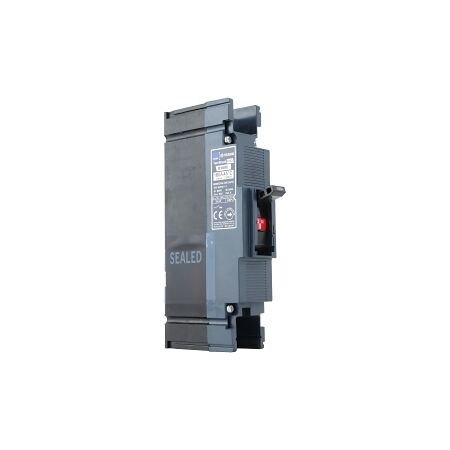

MCCB 160 Frame 25kA 1Pole 160A Fixed Thermal Magnetic NHP
MCCB with 160A fixed thermal and magnetic protection—ideal for industrial and residential power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 1
- Max Rated Operation Voltage: 250 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 13 kA
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Electrical Life: 10,000 cycles
- Mechanical Life: 20,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 35mm
- Weight: 0.5 kg
Key Features
- Thermal/magnetic release for reliable protection.
- Fixed thermal and magnetic trip curves for enhanced safety.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Residential: Electrical safety in home installations
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing waste and resource consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 160A is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.
