Making Trade Life Easy!

Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/MCCB 160 Frame 25kA 1Pole 32A | Fixed Thermal & Magnetic | Compact Design by NHP

Trade Discount 25%

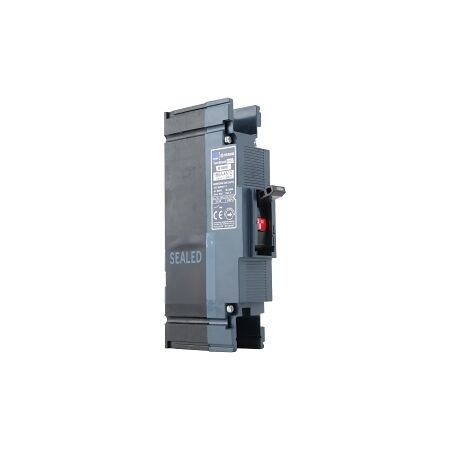

Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 32A Fix. Thermal Fix. Magnetic

MCCB 160 Frame 25kA 1Pole 32A | Fixed Thermal & Magnetic | Compact Design by NHP

BRAND: NHP

SKU: B160E3132FF

$171.80 List price: $228.10

+ −

30 Days Return Delivery Options

MCCB with 160 frame size and 25kA breaking capacity—ideal for industrial and commercial electrical protection. Built for reliability, with fixed thermal and magnetic trip unit for enhanced safety.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 32A Fix. Thermal Fix. Magnetic

Brand: NHP

SKU: B160E3132FF

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 32 A
Number of Poles: 1
Max Rated Operation Voltage: 250 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 13 kA
Type of Protection: Thermal/magnetic release
Frame Size Rating: 160 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 95.5mm x 35mm
Weight: 0.5 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
High breaking capacity of 25 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for circuit breakers.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 32A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

B160E3132FF-AU-TBP-MCCB-160AF-Datasheet.pdf (B160E3132FF-AU-TBP-MCCB-160AF-Datasheet.pdf, 334 Kb) [Download]
