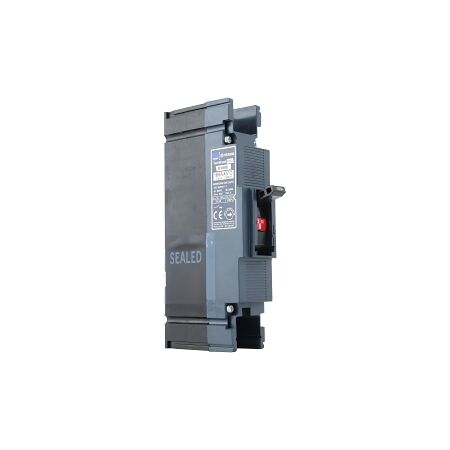

Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 40A Fix. Thermal Fix. Magnetic

MCCB 160 Frame 25kA 1Pole 40A | Thermal Magnetic | Fix. Trip by NHP

BRAND: NHP

SKU: B160E3140FF

$171.80 List price: $228.10

+ −

30 Days Return Delivery Options

MCCB with 160 frame and 25kA breaking capacity—ideal for industrial and residential power distribution. Built for reliable protection, with fixed thermal and magnetic trip curves.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 40A Fix. Thermal Fix. Magnetic

Brand: NHP

SKU: B160E3140FF

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 40 A
Number of Poles: 1
Max Rated Operation Voltage: 250 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 13 kA
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 10,000 cycles
Mechanical Life: 20,000 cycles
Cable Cross Section Range: 35-185 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 165mm x 95.5mm x 35mm
Weight: 0.5 kg

Key Features

Thermal/magnetic release for reliable protection.
Fixed thermal and magnetic trip curves for consistent performance.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
Residential: Electrical safety in home installations

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for long service life, reducing waste and resource consumption.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 25kA 1Pole 40A is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.

B160E3140FF-AU-TBP-MCCB-160AF-Datasheet.pdf (B160E3140FF-AU-TBP-MCCB-160AF-Datasheet.pdf, 334 Kb) [Download]
