MCCB 160 Frame 50kA 3P 160A | Electronic Release | High Breaking Capacity by NHP
MCCB with 160A rated current and electronic release—ideal for industrial and commercial power distribution. Built for high breaking capacity of 50kA, ensuring reliable protection and precise trip settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

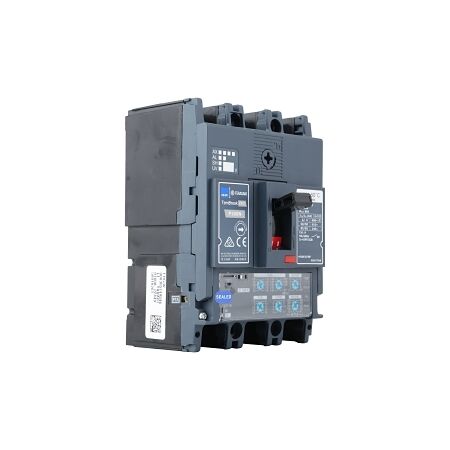

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A Basic Electronic
Brand: NHP
SKU: P160N23160BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 58-160 A
- Instantaneous Protection Adjustment Range: 480-1760 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss per Pole: 9 W
- Mechanical Life: 50000 cycles
- Max Vibration Acceleration: 19 m/s²
- Cable Cross Section Range: 1.5-70 mm²
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release for precise trip settings.
- High breaking capacity of 50 kA for reliable protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing waste and resource consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
