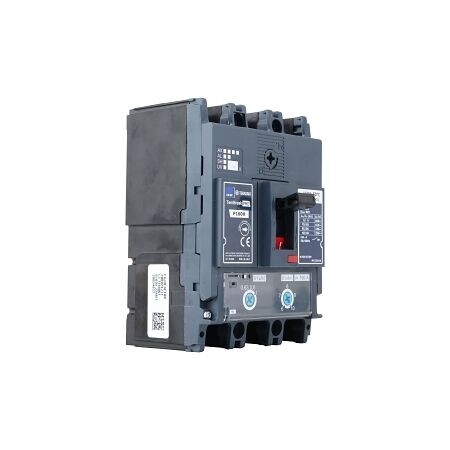

Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Adj. Therm. Adj. Mag.

MCCB 160 Frame 70kA 3P 160A | Adjustable Thermal & Magnetic | Front-Side Connection by NHP

BRAND: NHP

SKU: P160H23160TM

$960.30 List price: $1,275.20

+ −

30 Days Return Delivery Options

MCCB with 160A rated current and 70kA breaking capacity—ideal for industrial power distribution. Built for customized protection, with adjustable thermal and magnetic trip settings.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160H23160TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 42.3 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for circuit breakers.

Environmental Benefits

Designed for long electrical life, reducing waste and the need for frequent replacements.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A is available now for immediate purchase, ideal for industrial power distribution applications.

P160H23160TM-AU-TBP-MCCB-160AF-Datasheet.pdf (P160H23160TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 1,240 Kb) [Download]
