MCCB 1600A 3-Pole | 50kA Short Circuit | Electronic Trip | Earth Fault by NHP
MCCB with 1600A rated current and 3-pole configuration—ideal for industrial and commercial power distribution. Built for enhanced safety with 50kA short circuit capacity and integrated earth fault protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

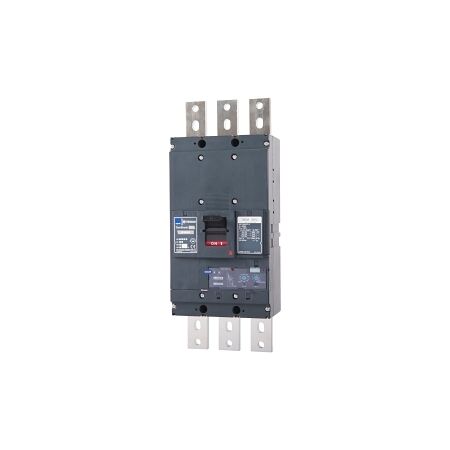

Product Name/Title: Terasaki TemBreak PRO MCCB 1600 Frame 50kA 3Pole 1600A Basic Electronic w GF
Brand: NHP
SKU: B1600N31600BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1600A
Technical Specifications
- Rated current: 1600 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 50 kA
- Rated service short circuit breaking capacity: 38 kA
- Trip curve: LSIG
- Long time overload protection adjustment range: 640-1600 A
- Instantaneous protection adjustment range: 4000-19200 A
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Power loss: 400 W
- Mechanical life: 5000 cycles
- Electrical life: 2000 cycles
- Pollution degree: 3
- Rated surrounding temperature: 50 °C
- Dimensions (H x L x W): 570mm x 140mm x 210mm
- Weight: 27 kg
Key Features
- Rated current of 1600 A with electronic release trip unit.
- Short circuit breaking capacity of 50 kA at 415 V.
- Integrated earth fault protection for enhanced safety.
- Suitable for isolation and front side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings and infrastructure
- General: Electrical protection in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide temperature range and high humidity.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 1600 Frame 50kA 3Pole 1600A Basic Electronic w GF is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
