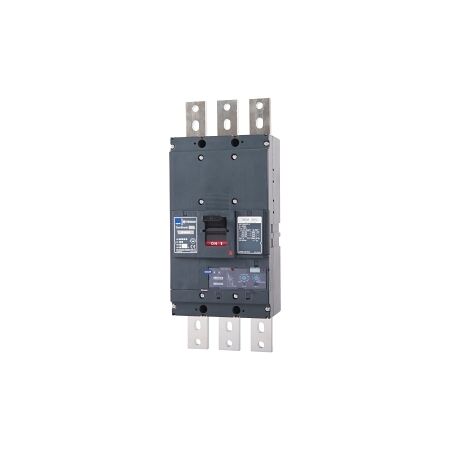

MCCB 1600A 3-Pole | 85kA Breaking Capacity | Electronic Trip | Earth Fault by NHP
MCCB with 1600A rating and 3-pole design—ideal for industrial and commercial power distribution. Built for precise protection, featuring electronic trip unit and integrated earth fault protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 1600 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 640-1600 A
- Instantaneous Protection Adjustment Range: 4000-19200 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 45 kA at 690 V AC
- Power Loss: 400 W
- Mechanical Life: 5000 cycles
- Electrical Life: 2000 cycles
- Dimensions (H x L x W): 570mm x 191mm x 210mm
- Weight: 27 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- High short circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 1600 Frame 85kA 3Pole 1600A Basic Electronic w GF is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
