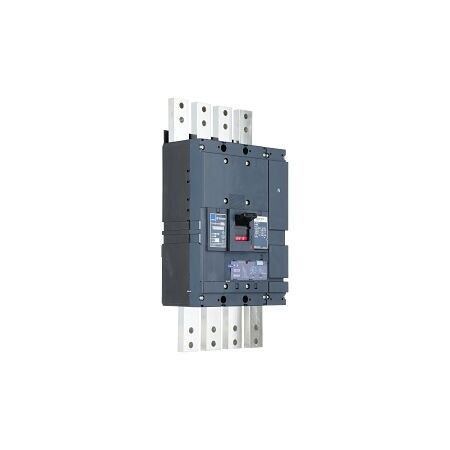

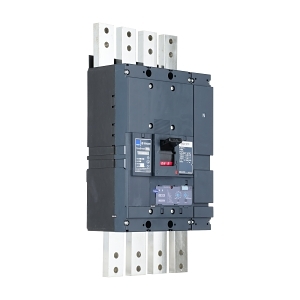

Terasaki TemBreak PRO MCCB 1600 Frame 50kA 4Pole 1600A Basic Electronic

MCCB 1600A 4-Pole | 50kA Breaking Capacity | Electronic Release | NHP by Terasaki

BRAND: NHP

SKU: B1600N41600BE

$14,238.10 List price: $18,906.30

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

MCCB with 1600A rated current and 4-pole design—ideal for industrial and commercial power distribution. Built for precise protection with electronic release and high 50kA breaking capacity.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 1600 Frame 50kA 4Pole 1600A Basic Electronic

Brand: NHP

SKU: B1600N41600BE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1600A

Technical Specifications

Rated Current: 1600 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 38 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Long Time Overload Protection Adjustment Range: 640-1600 A
Instantaneous Protection Adjustment Range: 4000-19200 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 400 W
Mechanical Life: 5000 cycles
Dimensions (H x L x W): 570mm x 140mm x 280mm
Weight: 35 kg

Key Features

Electronic release for precise protection.
High breaking capacity of 50 kA.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 1600 Frame 50kA 4Pole 1600A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

B1600N41600BE-AU-TBP-MCCB-1600AF-Datasheet.pdf (B1600N41600BE-AU-TBP-MCCB-1600AF-Datasheet.pdf, 644 Kb) [Download]
