MCCB 160A 200kA 3P | Adjustable Thermal & Magnetic | 160 Frame by NHP
MCCB with 160A current and 200kA short circuit capacity—ideal for industrial and commercial electrical protection. Built for safety with adjustable thermal and magnetic trip settings, ensuring reliable power distribution.
Sign in
Please login to continue to your account.

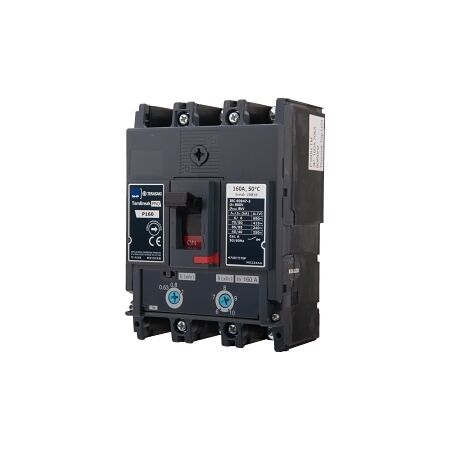

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 160A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: B160R33160TM
Alternatively Known As: Terasaki Circuit Breaker, MCCB 160A, TemBreak PRO 160A
- Rated ultimate short circuit breaking capacity: 200 kA
- Rated service short circuit breaking capacity: 135 kA
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Electrical life: 10,000 cycles
- Mechanical life: 20,000 cycles
- Pollution degree: 3
- Maximum operating temperature: 70 °C
- Storage temperature: -10-70 °C
- Dimensions (H x L x W): 165mm x 151mm x 105mm
- Weight: 1 kg
- Rated current: 160 A
- 200 kA short circuit breaking capacity
- Adjustable thermal and magnetic trip settings
- Suitable for isolation
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
- Complies with AS/NZS IEC 60947.2 for circuit breakers.
- Designed for high efficiency, reducing energy loss and improving overall system performance.
1 year warranty against manufacturing defects.
The Terasaki TemBreak PRO MCCB 160 Frame 200kA 3P 160A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
