MCCB 160A 3P | 50kA Breaking Capacity | Adjustable Thermal & Magnetic by NHP
MCCB with 160A rated current and 50kA short circuit breaking capacity—ideal for industrial and commercial electrical protection. Built for safety, with adjustable thermal and magnetic settings for precise control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

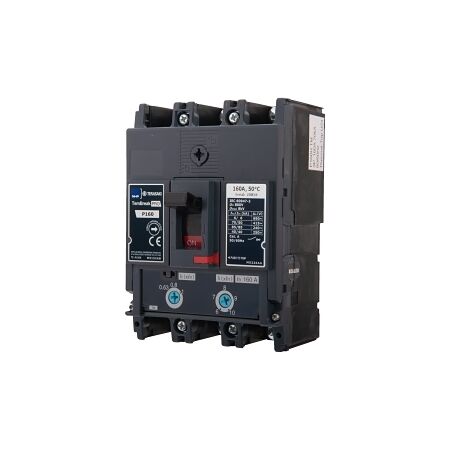

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A Adj. Therm. Adj. Mag.
Brand: NHP
SKU: P160N23160TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A
Technical Specifications
- Rated current: 160 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated short circuit breaking capacity: 50 kA
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Electrical life: 30,000 cycles
- Mechanical life: 50,000 cycles
- Cable cross section range: 1.5-70 mm²
- Pollution degree: 3
- Max operating temperature: 70 °C
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Rated current: 160 A
- 50 kA short circuit breaking capacity
- Thermal/magnetic release trip unit
- Adjustable thermal and magnetic settings
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures and humidity levels.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 160A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
