MCCB 160A 3P | 70kA Breaking Capacity | Electronic LSIG | H Frame by NHP
MCCB with 160A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic LSIG and integrated earth fault safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

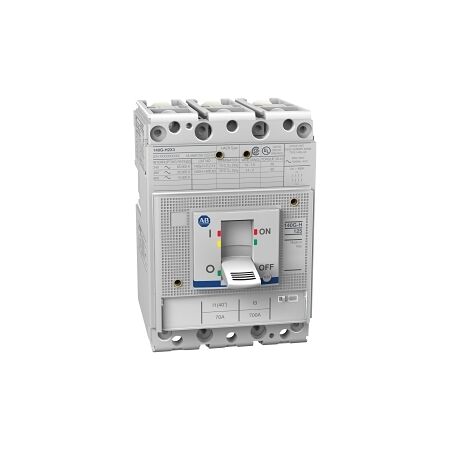

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 160A Electronic LSIG
Brand: NHP
SKU: 140GH6I3D16
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 64-160 A
- Instantaneous Protection Adjustment Range: 160-1600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 25.4 W
- Rated Surrounding Temperature: -40 to 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40 to 80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Power distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for energy efficiency, reducing power loss during operation.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB H Frame 70kA 3P 160A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
