MCCB 160A 4P 50kA | Electronic Trip with GF | 160 Frame by NHP
MCCB with 160A rated current and 4 poles—ideal for industrial and residential power distribution. Built for precise protection with electronic trip and integrated earth fault safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

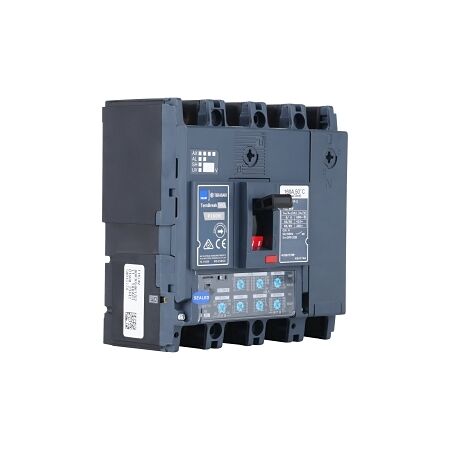

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 4P 160A Basic Electronic with GF
Brand: NHP
SKU: P160N24160BEG
Alternatively Known As: Terasaki Circuit Breaker, MCCB 160A, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Mechanical Life: 50,000 cycles
- Electrical Life: 30,000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 130mm x 95.5mm x 120mm
- Weight: 1.3 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Residential: Electrical safety in home installations
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing waste and resource consumption.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 50kA 4P 160A Basic Electronic with GF is available now for immediate purchase. Ideal for industrial and residential electrical safety applications.
