MCCB 160A 4P | 70kA Breaking Capacity | Adjustable Thermal Magnetic | H Frame by NHP
MCCB with 160A rated current and 4 poles—ideal for industrial and commercial power distribution. Built for high breaking capacity of 70kA, with adjustable thermal and magnetic trip settings for customized protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

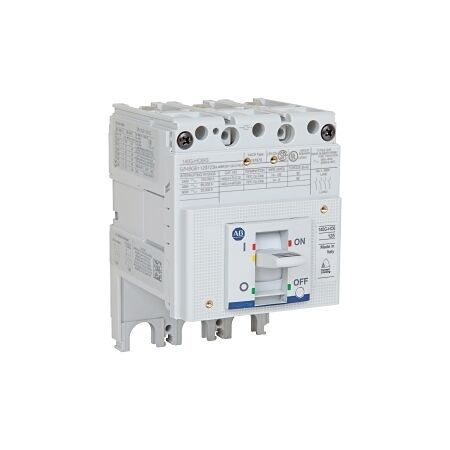

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 4P 160A Adjustable Thermal Magnetic
Brand: NHP
SKU: 140GH6F4D16
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Long Time Overload Protection Adjustment Range: 112-160 A
- Instantaneous Protection Adjustment Range: 800-1600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 64.6 W
- Dimensions (H x L x W): 130mm x 116mm x 120mm
- Weight: 1.6 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 70 kA for reliable short circuit protection.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reduced power loss.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB H Frame 70kA 4P 160A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
