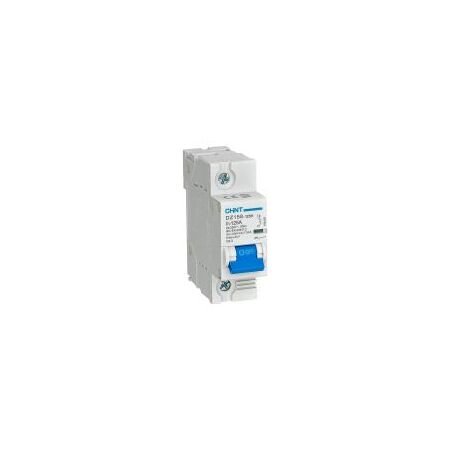

MCCB 1P 100A 10kA 125A Frame DZ158 Chint

BRAND: CABAC
SKU: 158087
$26.00 List price: $34.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint DZ158-125H MCCB 1P 100A features 10kA breaking capacity, 125A frame, and compact moulded case to IEC/EN 60947-2. Ideal for distribution panels.

Alternatively Known As: CHINT DZ158 1P MCCB, 100A single-pole circuit breaker, 10kA moulded case circuit breaker

Technical Specifications
  • Model: DZ158-125H
  • Rated Current: 100 A
  • Poles: 1P
  • Rated Voltage: AC 230/240 V
  • Rated Frequency: 50/60 Hz
  • Rated Breaking Capacity: 10 kA
  • Thermo-magnetic Release Characteristic: 8–12 In
  • Insulation Voltage: 500 V
  • Impulse Withstand Voltage: 4 kV
  • Terminal Capacity: 16–50 mm²
  • Tightening Torque: 3.5 N·m
  • Mounting: 35 mm DIN rail with fast-clip device
  • Protection Degree: IP20
  • Mechanical Life: 8,500 operations
  • Electrical Life: 1,500 operations
  • Standard: IEC/EN 60947-2
  • Dimensions (H x L x W): 84.5mm x 65.5mm x 27mm
  • Weight: 0.122 kg
Key Features
  • 100 A single-pole protection for low-voltage distribution circuits
  • 10 kA short-circuit breaking capacity
  • Thermo-magnetic overload and short-circuit protection
  • Compact 27 mm-wide design occupying approximately 1.5 DIN modules
  • Suitable for switching and isolation as well as circuit protection
  • Top or bottom cable connection
  • Compatible with CHINT auxiliary contacts
  • Designed for industrial, commercial and residential distribution applications
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements, including AS/NZS 3000. Confirm fault levels, cable sizing, discrimination and local certification requirements before installation.
Applications
  • Distribution panels
  • Low-voltage commercial switchboards
  • Industrial control and distribution systems
  • Residential main or sub-distribution boards
  • Overload and short-circuit protection for single-phase circuits
Standards & Compliance
  • AS/NZS IEC 60947.2:2015 is the applicable Australian/New Zealand standard for low-voltage circuit-breakers; verify the specific product certification and RCM requirements before installation
  • IEC/EN 60947-2 product compliance
Environmental Benefits
  • Long mechanical and electrical service life can reduce replacement frequency and associated waste
  • RoHS documentation is available for the DZ158 series, supporting restriction of hazardous substances
  • Compact DIN rail format can reduce switchboard material and enclosure space requirements
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable contract and warranty terms.

Available Now

Available through authorised CHINT distributors in Australia.
