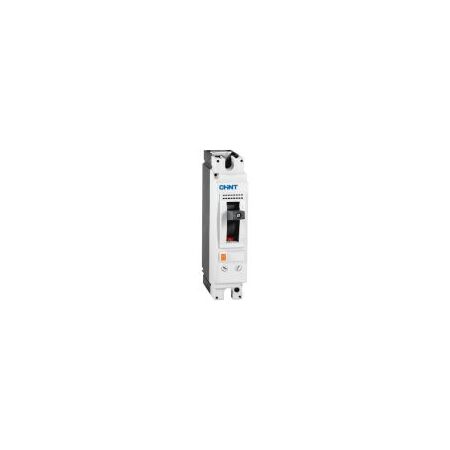

MCCB 1P 20A 50kA Thermal Magnetic 125A Frame NM8N Chint

BRAND: CABAC
SKU: 271562
$362.70 List price: $483.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 20A 1P MCCB features 50kA breaking capacity, thermal-magnetic trip unit and a 125A frame. Ideal for switchboard mains and sub-mains protection.

Alternatively Known As: NM8N-125S TM 20A 1P MCCB, Single-Pole Moulded Case Circuit Breaker, Thermal-Magnetic Circuit Breaker

Technical Specifications
  • Series: NM8N
  • Product Type: Moulded Case Circuit Breaker
  • Rated Current: 20 A
  • Poles: 1P single pole
  • Frame Size: 125 A
  • Breaking Capacity: 50 kA
  • Release Type: TM thermal-magnetic
  • Rated Frequency: 50/60 Hz
  • Rated Operational Voltage: Up to 690 V AC
  • Rated Insulation Voltage: 800 V
  • Protection Class: IP40
  • Applicable Product Standard: IEC/EN 60947-2
  • Dimensions (H x L x W): 135mm x 147mm x 47mm
  • Weight: 0.9 kg
Key Features
  • High 50kA short-circuit breaking capacity
  • Thermal-magnetic protection against overloads and short circuits
  • Compact single-pole configuration
  • 125A frame with a 20A rated trip current
  • Suitable for switchboard mains and sub-mains protection
  • Designed for vertical or horizontal installation with top or bottom line entry
  • Compatible with NM8N accessories and auxiliary devices
Professional Installation Requirements
  • Installation, selection and testing should be performed by a licensed electrician in accordance with AS/NZS 3000, applicable switchboard requirements and the manufacturer's instructions.
Applications
  • Switchboard mains protection
  • Sub-mains protection
  • Commercial electrical distribution boards
  • Industrial low-voltage distribution systems
  • Protection of cables and electrical equipment against overload and short circuit conditions
Standards & Compliance
  • AS/NZS IEC 60947.2:2015, applicable to low-voltage circuit-breakers including MCCBs
Environmental Benefits
  • RoHS documentation is available for the NM8N product range
  • Thermal-magnetic protection can help prevent damage to cables and equipment, extending service life and reducing replacement waste
  • Long service life reduces the frequency of component replacement
Warranty Information

CHINT's general warranty policy covers other low-voltage apparatus for 27 months from the date of manufacture when sold through authorised sales channels, subject to applicable contract terms.

Available Now

Available through authorised CHINT distributors in Australia.
