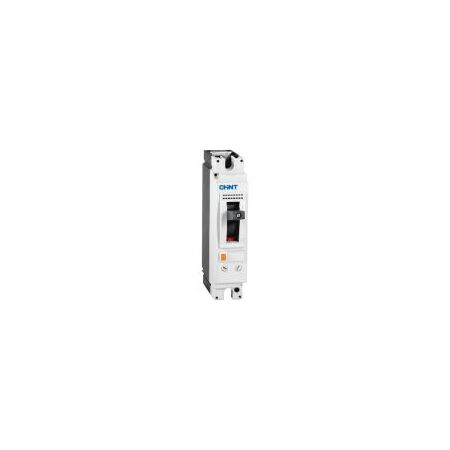

MCCB 1P 25A 50kA Thermal Magnetic 125A Frame NM8N Chint

BRAND: CABAC
SKU: 271563
$362.70 List price: $483.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 25A 1P MCCB features 50kA breaking capacity, thermal-magnetic trip unit and a 125A frame. Ideal for switchboard mains and sub-mains protection.

Alternatively Known As: Moulded Case Circuit Breaker, Thermal-Magnetic MCCB, Single-Pole Circuit Breaker

Technical Specifications
  • Product Type: Moulded case circuit breaker
  • Rated Current: 25 A
  • Number of Poles: 1P
  • Frame Size: 125 A
  • Release Type: Thermal-magnetic
  • Breaking Capacity: 50 kA
  • Rated Voltage: 220–240 V AC for 1P configuration
  • Rated Frequency: 50/60 Hz
  • Installation: Vertical or horizontal mounting; top or bottom line entry
  • Ingress Protection: IP40
  • Selectivity Category: A
  • Dimensions (H x L x W): 140mm x 108.5mm x 35mm
  • Weight: 0.52 kg
Key Features
  • Thermal-magnetic protection against overload and short circuit
  • High 50 kA short-circuit breaking capacity
  • Compact 125A frame with a 25A rated trip current
  • Suitable for switchboard mains and sub-mains protection
  • Supports isolation when installed in accordance with applicable requirements
  • Designed for commercial, industrial and building electrical distribution systems
Professional Installation Requirements
  • Installation, testing and connection to mains electrical systems must be carried out by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
  • Switchboard mains protection
  • Sub-mains protection
  • Commercial electrical distribution boards
  • Industrial low-voltage distribution systems
  • Protection of electrical equipment and building services
Standards & Compliance
  • AS/NZS IEC 60947.2 for low-voltage circuit-breakers
Environmental Benefits
  • Durable switchgear construction can support a long service life and reduce replacement waste
  • Moulded-case and metal components can be separated for appropriate end-of-life recycling where local facilities accept them
  • Thermal-magnetic protection helps limit damage to downstream equipment during overload and short-circuit events
Warranty Information

CHINT low-voltage apparatus is covered for defects in materials and workmanship for 27 months from the date of manufacture when purchased through authorised sales channels, subject to the applicable contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
