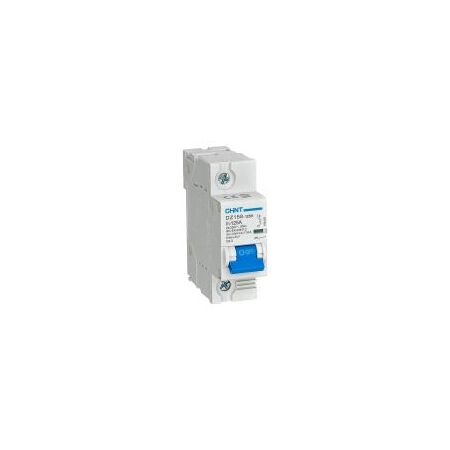

MCCB 1P 80A 10kA 125A Frame DZ158 Chint

BRAND: CABAC
SKU: 158089
$23.10 List price: $30.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint DZ158-125H MCCB 1P 80A features 10kA breaking capacity, 125A frame, and compact moulded case to IEC/EN 60947-2. Ideal for distribution panels.

Alternatively Known As: DZ158-125H 1P 80A Circuit Breaker, CHINT 80A Moulded Case Circuit Breaker, 1-Pole 10kA MCCB

Technical Specifications
  • Rated Current: 80 A
  • Number of Poles: 1P
  • Frame Rating: 125 A
  • Rated Voltage: 230/240 V AC
  • Rated Frequency: 50/60 Hz
  • Breaking Capacity: 10 kA
  • Trip Characteristic: C curve, 8–12 times rated current
  • Insulation Voltage: 500 V
  • Impulse Withstand Voltage: 4 kV
  • Protection Degree: IP20
  • Mounting: 35 mm DIN rail to EN 60715
  • Terminal Tightening Torque: 3.5 N·m
  • Standard: IEC/EN 60947-2
  • Catalogue Code: 158089
  • Dimensions (H x L x W): 84.5mm x 65.5mm x 27mm
  • Weight: 0.9 kg
Key Features
  • Thermal-magnetic overload and short-circuit protection
  • 10 kA rated ultimate short-circuit breaking capacity
  • Compact 1-pole design occupying approximately 27 mm of DIN-rail width
  • 125 A frame supports a range of 63–125 A ratings
  • Line connection permitted from the top or bottom
  • Contact position indicator for quick visual status checks
  • Suitable for distribution panels and low-voltage final distribution applications
  • Mechanical and electrical switching endurance suitable for normal service operation
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions. Confirm the prospective fault current, conductor sizing, enclosure suitability and coordination before installation.
Applications
  • Distribution panels
  • Residential, commercial and industrial low-voltage switchboards
  • Overload and short-circuit protection for single-phase circuits
  • Protection of lighting, power and general electrical distribution circuits
  • Maintenance isolation of connected electrical equipment
Standards & Compliance
  • AS/NZS IEC 60947-2 for low-voltage circuit-breakers
  • AS/NZS 3000 for installation within Australian electrical installations
Environmental Benefits
  • Resettable protection can reduce equipment damage and replacement waste after overload or short-circuit events
  • Durable moulded-case construction supports extended service life
  • Metal and thermoplastic components may be recoverable through appropriate electrical equipment recycling streams
Warranty Information

CHINT's general warranty policy for other low-voltage apparatus provides 27 months from the date of manufacture when products are purchased through authorised sales channels, subject to applicable contract terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
