MCCB 200A 3P | 36kA Breaking Capacity | Fixed Thermal Magnetic by NHP
MCCB with 200A rated current and 36kA short circuit breaking capacity—ideal for industrial and commercial power distribution. Built for reliability, with fixed thermal magnetic trip unit for enhanced protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

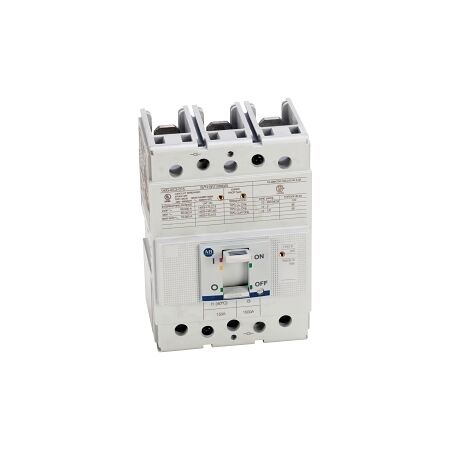

Product Name/Title: Allen-Bradley 140G MCCB I Frame 36kA 3P 200A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GI2C3D20
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 200A
Technical Specifications
- Rated current: 200 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 36 kA
- Rated service short circuit breaking capacity: 27 kA
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Electrical life: 8000 cycles
- Mechanical life: 25000 cycles
- Power loss: 39.6 W
- Rated impulse withstand voltage: 8 kV
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 150mm x 101mm x 105mm
- Weight: 1.7 kg
Key Features
- Rated current: 200 A
- 36 kA short circuit breaking capacity
- Thermal/magnetic release trip unit
- Fixed thermal and magnetic trip curve
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB I Frame 36kA 3P 200A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
