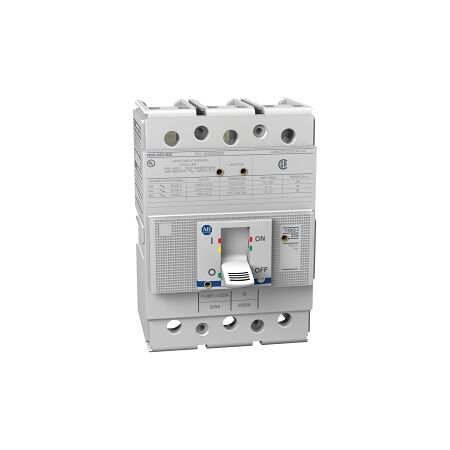

Allen-Bradley 140G MCCB I Frame 50kA 3P 225A Fixed Thermal Magnetic

MCCB 225A 3P | 50kA Breaking Capacity | Fixed Thermal Magnetic by NHP

BRAND: NHP

SKU: 140GI3C3D22

$1,003.30 List price: $1,332.20

+ −

30 Days Return Delivery Options

MCCB with 225A current and 3 poles—ideal for industrial and commercial electrical systems. Built for reliable circuit protection, with fixed thermal magnetic trip and 50kA breaking capacity.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB I Frame 50kA 3P 225A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GI3C3D22

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 225A

Technical Specifications

Rated Current: 225 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 25 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 43.2 W
Rated Surrounding Temperature: -40 to 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40 to 80 °C
Dimensions (H x L x W): 150mm x 101mm x 105mm
Weight: 1.7 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
High breaking capacity of 50 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB I Frame 50kA 3P 225A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GI3C3D22-AU-140G-MCCB-I-Frame-Datasheet.pdf (140GI3C3D22-AU-140G-MCCB-I-Frame-Datasheet.pdf, 269 Kb) [Download]
