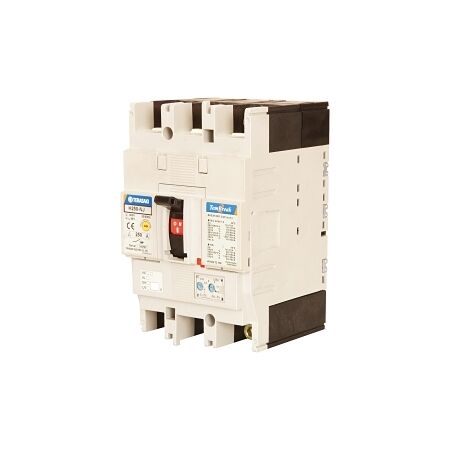

MCCB 250 Frame 125kA 3P 250A Thermal Magnetic Adjustable Trip NHP
MCCB with 250A current and 125kA breaking capacity—ideal for industrial power distribution. Built for reliable protection
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.5 kg
Key Features
- Thermal/magnetic release for reliable protection
- Adjustable thermal and magnetic trip curves
- Suitable for isolation and reverse connection of supply
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for long electrical and mechanical life, reducing waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 250A Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
