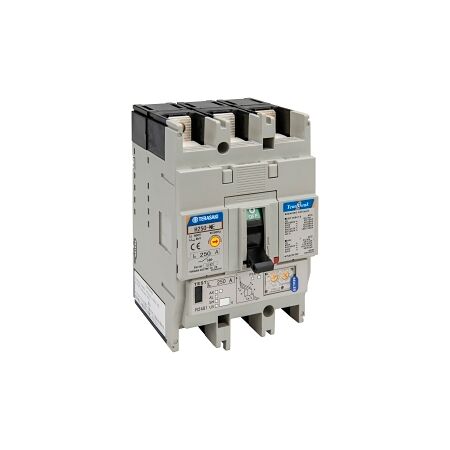

MCCB 250 Frame 125kA 3P 40A Electronic Trip High Capacity NHP
MCCB with 250 frame size and 125kA short circuit capacity—ideal for industrial and commercial power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 165mm x 127mm x 105mm
- Weight: 2.5 kg
Key Features
- Electronic release trip unit for precise protection.
- 125 kA short circuit breaking capacity at 415 V.
- Long time overload protection adjustment range of 16-40 A.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in demanding environments.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemBreak 2 MCCB 250 Frame 125kA 3P 40A Electronic is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
