MCCB 250 Frame 25kA 3P 200A | Adjustable Thermal & Magnetic | High Breaking Capacity by NHP
MCCB with 250 frame size, 25kA breaking capacity, and adjustable thermal and magnetic settings—ideal for industrial and commercial electrical systems. Built for reliable protection, with high efficiency and energy loss reduction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

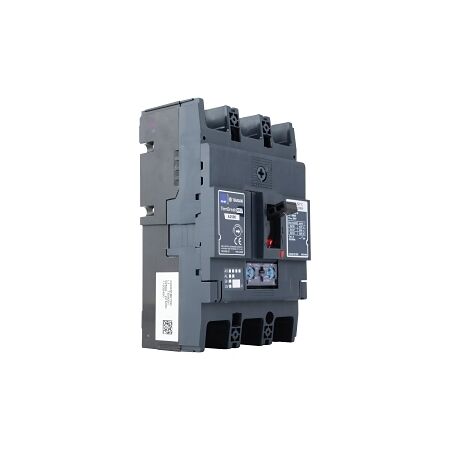

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 25kA 3P 200A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: A250E3200TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 200A
Technical Specifications
- Rated Current: 200 A
- Number of Poles: 3
- Max Rated Operation Voltage: 525 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 19 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 125-200 A
- Instantaneous Protection Adjustment Range: 1000-2600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Mechanical Life: 18000 cycles
- Electrical Life: 6000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 25 kA for reliable short circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
- General: Power management in various electrical installations
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 25kA 3P 200A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
