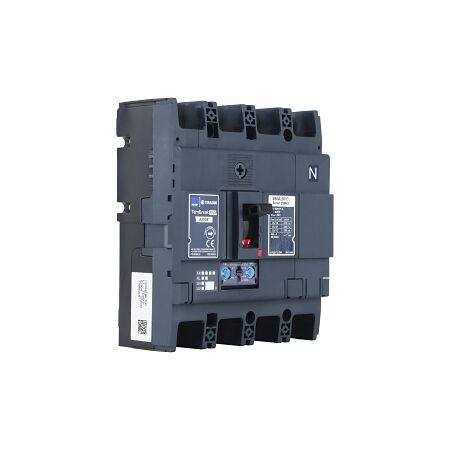

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 25kA 4P 250A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: A250E4250TM
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
- Rated Current: 250 A
- Number of Poles: 4
- Max Rated Operation Voltage: 525 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 19 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Electrical Life: 6000 cycles
- Mechanical Life: 18000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 140mm
- Weight: 1.9 kg
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 25 kA for reliable short circuit protection.
- Suitable for isolation and front-side connection.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
- Designed for high efficiency, reducing energy loss and improving overall system performance.
2 years warranty against manufacturing defects.
The Terasaki TemBreak PRO MCCB 250 Frame 25kA 4P 250A is available now for immediate purchase, ideal for industrial and commercial electrical protection.
