MCCB 250 Frame 36kA 3P 40A | Electronic Release | Adjustable Protection by NHP
MCCB with 250 frame size, 36kA breaking capacity, and electronic release—ideal for industrial and commercial power distribution. Built for precise protection, with adjustable overload and short circuit settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

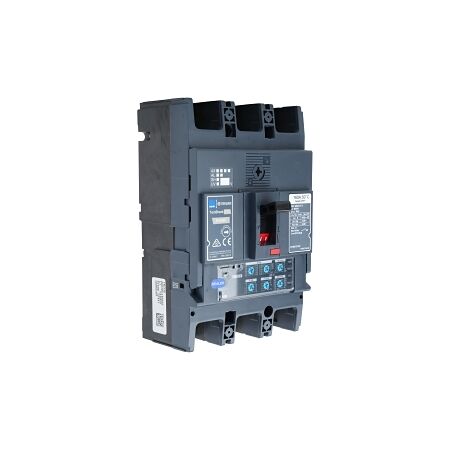

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 40A Basic Electronic
Brand: NHP
SKU: P250F340BE
Alternatively Known As: Terasaki MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 14.7-40 A
- Instantaneous Protection Adjustment Range: 120-600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Short Time Protection Adjustment Range: 22.1-400 A
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- AC Power Loss per Pole: 0.4 W
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release for precise protection.
- 36 kA short circuit breaking capacity.
- Adjustable overload and short circuit protection settings.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for circuit breakers.
Environmental Benefits
- Designed for energy efficiency, reducing power loss during operation.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 36kA 3P 40A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
