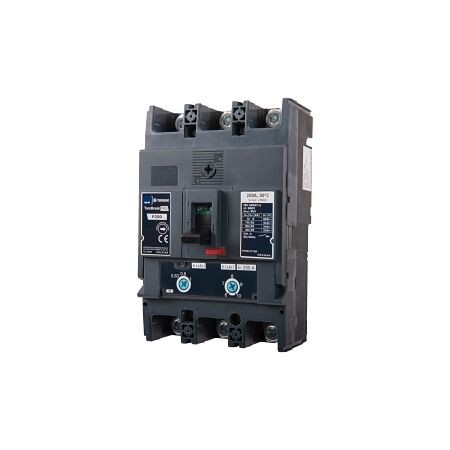

Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 160A Adj. Thermal Adj. Magnetic

MCCB 250 Frame 50kA 3P 160A | Adjustable Thermal & Magnetic | High Breaking Capacity by NHP

BRAND: NHP

SKU: P250N3160TM

$1,133.70 List price: $1,505.40

+ −

30 Days Return Delivery Options

MCCB with 250 frame size and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for customized protection, with adjustable thermal and magnetic trip settings.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 160A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250N3160TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 160A

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 100-160 A
Instantaneous Protection Adjustment Range: 960-2080 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 30000 cycles
Electrical Life: 10000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 95.5mm x 105mm
Weight: 1.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 50 kA for reliable circuit protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

Standard warranty of 2 years against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 160A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

P250N3160TM-AU-TBP-MCCB-250AF-Datasheet.pdf (P250N3160TM-AU-TBP-MCCB-250AF-Datasheet.pdf, 1,027 Kb) [Download]
