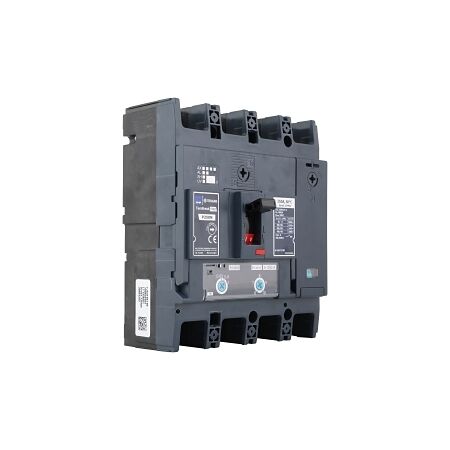

Terasaki TemBreak PRO MCCB 250 Frame 50kA 4P 50A Adj. Thermal Adj. Magnetic

MCCB 250 Frame 50kA 4P 50A | Adj. Thermal & Magnetic | High Breaking Capacity by NHP

BRAND: NHP

SKU: P250N450TM

$886.30 List price: $1,176.80

+ −

30 Days Return Delivery Options

MCCB with 250 frame size and 50kA breaking capacity—ideal for industrial and commercial electrical systems. Built for customized protection, with adjustable thermal and magnetic trip settings.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 50kA 4P 50A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250N450TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 50A

Technical Specifications

Rated Current: 50 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 32-50 A
Instantaneous Protection Adjustment Range: 300-650 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 30,000 cycles
Electrical Life: 10,000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 95.5mm x 140mm
Weight: 2 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 50 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems
General: Power management in various electrical installations

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 50kA 4P 50A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

P250N450TM-AU-TBP-MCCB-250AF-Datasheet.pdf (P250N450TM-AU-TBP-MCCB-250AF-Datasheet.pdf, 1,296 Kb) [Download]
