MCCB 250A 3P Non Auto Switch | 690V Max | Compact Design by NHP
MCCB with 250A rated current and 3 poles—ideal for industrial and commercial power distribution. Built for safety and efficiency, with non auto-switch protection and compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

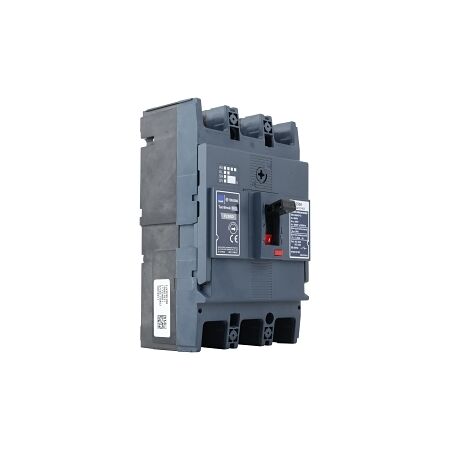

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 3P 250A Non Auto Switch
Brand: NHP
SKU: P250D3250NN
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 3.6 kA
- Electrical Life: 10,000 cycles
- Mechanical Life: 30,000 cycles
- Power Loss: 45 W
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- Rated current of 250 A with 3 poles.
- Non auto-switch type of protection trip unit.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 3P 250A Non Auto Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
