MCCB 250A 4P | 125kA Breaking Capacity | Electronic Metering | Modbus TCP by NHP

BRAND: NHP
SKU: H250NE4250AC
$11,320.90 List price: $15,032.60
+ −
30 Days Return Delivery Options
MCCB with 250A rated current and 125kA short circuit breaking capacity—ideal for industrial and commercial power distribution. Built for safety and efficiency, featuring electronic metering and Modbus TCP integration.

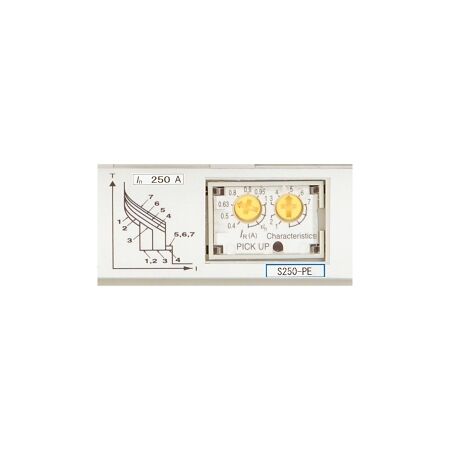

Product Name/Title: Terasaki TemBreak 2 MCCB 250 Frame 125kA 4P 250A Electronic Metering Comms Output XOW 2S AC

Brand: NHP

SKU: H250NE4250AC

Alternatively Known As: Terasaki Circuit Breaker, MCCB, Electronic Metering Breaker

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 4
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 125 kA
  • Rated Service Short Circuit Breaking Capacity: 85 kA
  • Type of Protection Trip Unit: Electronic release
  • Trip Curve: LSI
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Short Time Protection Adjustment Range: 250-2500 A
  • Rated Impulse Withstand Voltage: 8 kV
  • Electrical Life: 10000 cycles
  • Mechanical Life: 30000 cycles
  • Pollution Degree: 3
  • Max Operating Temperature: 70 °C
  • Storage Temperature: -10-70 °C
  • Allowable Relative Humidity: 0-85 %
  • Dimensions (H x L x W): 165mm x 127mm x 164mm
  • Weight: 3.3 kg
Key Features
  • 250A rated current with 125kA short circuit breaking capacity.
  • Electronic release trip unit with LSI trip curve.
  • Integrated energy metering function for monitoring usage.
  • Modbus TCP communications protocol for integration.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in large buildings
  • General: Protection of electrical circuits in various applications
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for high performance and reliability in various environmental conditions.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Terasaki TemBreak 2 MCCB 250 Frame is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

H250NE4250AC-AU-TB2-MCCB-Datasheet.pdf (H250NE4250AC-AU-TB2-MCCB-Datasheet.pdf, 2,096 Kb) [Download]
