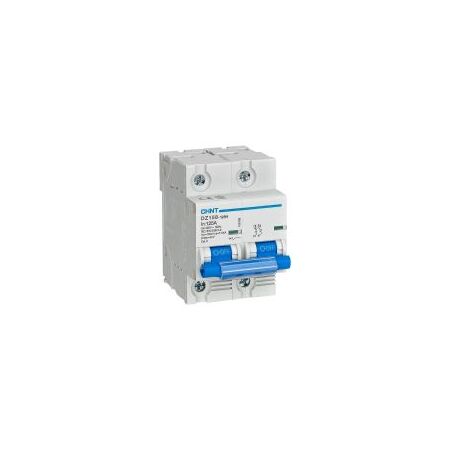

MCCB 2P 80A 10kA 125A Frame DZ158 Chint

BRAND: CABAC
SKU: 158092
$68.40 List price: $91.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint DZ158-125H MCCB 2P 80A features 10kA breaking capacity, 125A frame, and compact moulded case to IEC/EN 60947-2. Ideal for distribution panels.

Alternatively Known As: CHINT DZ158-125H 2P 80A Moulded Case Circuit Breaker, 80A Double-Pole Circuit Breaker, DIN-Rail MCCB

Technical Specifications
  • Rated Current: 80 A
  • Number of Poles: 2P
  • Frame Rating: 125 A
  • Rated Breaking Capacity: 10 kA
  • Rated Operational Voltage: 400/415 V AC
  • Rated Insulation Voltage: 500 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Thermal-Magnetic Release: 8–12 × In
  • Standard: IEC/EN 60947-2
  • Protection Degree: IP20
  • Mounting: 35 mm DIN rail to EN 60715
  • Terminal Cable Capacity: 16–50 mm²
  • Terminal Tightening Torque: 3.5 N·m
  • Electrical Life: 1,500 cycles
  • Mechanical Life: 8,500 cycles
  • Operating Temperature: −5°C to +40°C
  • Dimensions (H x L x W): 84.5mm x 65.5mm x 54mm
  • Weight: 0.32 kg
Key Features
  • Two-pole protection and isolation for low-voltage distribution circuits
  • 10 kA rated short-circuit breaking capacity
  • 125 A frame with an 80 A rated current
  • Compact moulded-case construction for distribution panels
  • Thermal-magnetic overload and short-circuit protection
  • Can be installed on a standard 35 mm DIN rail
  • Line connection permitted from the top or bottom
  • Includes contact position indication
  • Compatible with auxiliary contact accessories
Professional Installation Requirements
  • Installation and connection should be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. The circuit must be designed so the prospective short-circuit current does not exceed the breaker's rated breaking capacity.
Applications
  • Distribution panels
  • Commercial and industrial low-voltage switchboards
  • Overload and short-circuit protection for AC circuits
  • Submain and feeder circuit protection
  • Equipment isolation and circuit switching
Standards & Compliance
  • AS/NZS IEC 60947.2:2015 is the applicable Australian/New Zealand standard for circuit-breakers; the product documentation specifies IEC/EN 60947-2. Verify local certification and RCM requirements before installation.
Environmental Benefits
  • Durable moulded-case construction can extend service life and reduce replacement waste
  • Metal terminals and internal conductive components are recyclable at end of service life
  • Supports reliable circuit protection, helping reduce damage and premature replacement of downstream electrical equipment
Warranty Information

CHINT's general warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
