MCCB 36kA 3P 160A | Adjustable Thermal Magnetic | H Frame by NHP
MCCB with 36kA breaking capacity and adjustable thermal magnetic trip—ideal for industrial motor control and commercial electrical distribution. Built for high operational voltages, ensuring reliable protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

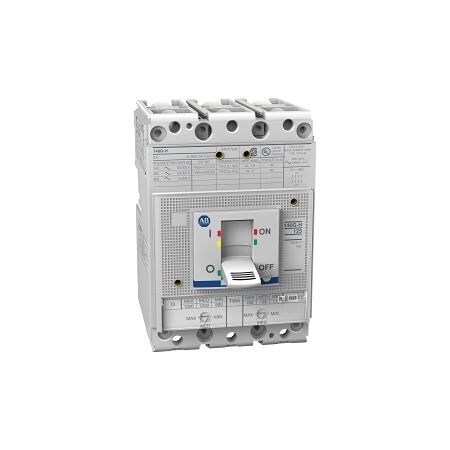

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 160A Adjustable Thermal Magnetic
Brand: NHP
SKU: 140GH2F3D16
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Long Time Overload Protection Adjustment Range: 112-160 A
- Instantaneous Protection Adjustment Range: 800-1600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 10 kA
- Rated Short Circuit Breaking Capacity (ICS): 10 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 48.5 W
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 36 kA for reliable short circuit protection.
- Suitable for isolation and can handle high operational voltages.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB H Frame 36kA 3P 160A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
