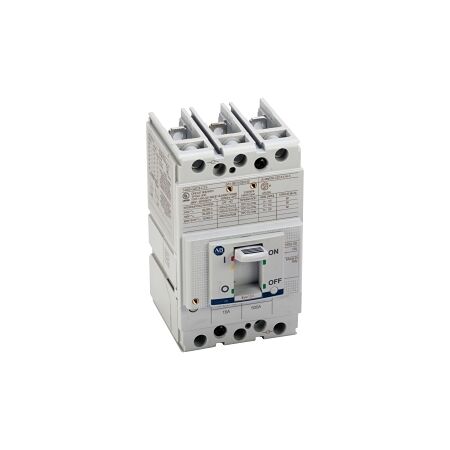

Allen-Bradley 140G MCCB G Frame 36kA 3P 20A Fixed Thermal Magnetic

MCCB 36kA 3P 20A | Fixed Thermal Magnetic | 690V Rated by NHP

BRAND: NHP

SKU: 140GG2C3C20

$237.40 List price: $315.30

+ −

30 Days Return Delivery Options

MCCB with 36kA breaking capacity and 3 poles—ideal for industrial motor control and commercial electrical distribution. Built for reliable protection, with fixed thermal and magnetic trip unit.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 3P 20A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GG2C3C20

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 20 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA at 690 V AC
Rated Short Circuit Breaking Capacity (ICS): 4.5 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 5.4 W
Suitable for Isolation: Yes
Dimensions (H x L x W): 130mm x 101mm x 76.2mm
Weight: 1.1 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
High breaking capacity of 36 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss during operation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB G Frame 36kA 3P 20A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.

Non-Returnable & Non-Cancellable

140GG2C3C20-AU-140G-MCCB-G-Frame-Datasheet.pdf (140GG2C3C20-AU-140G-MCCB-G-Frame-Datasheet.pdf, 284 Kb) [Download]
