MCCB 36kA 3P 50A | Fixed Thermal Magnetic | 690V Rated by NHP
MCCB with 36kA short circuit capacity and 50A rated current—ideal for industrial motor control and commercial electrical distribution. Built for reliable protection with fixed thermal and magnetic trip units.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

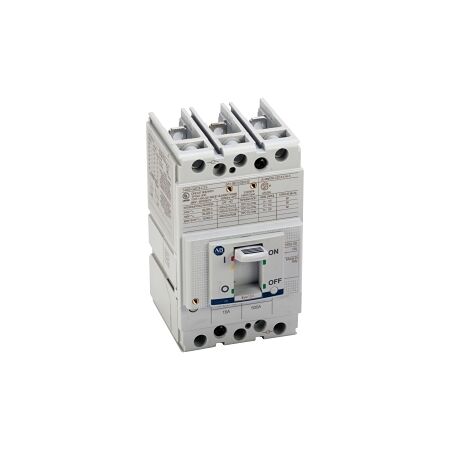

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 3P 50A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG2C3C50
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 6 kA at 690 V AC
- Rated Short Circuit Breaking Capacity (ICS): 4.5 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 11.1 W
- Suitable for Isolation: Yes
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- Rated short circuit breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss during operation.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB G Frame 36kA 3P 50A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.
