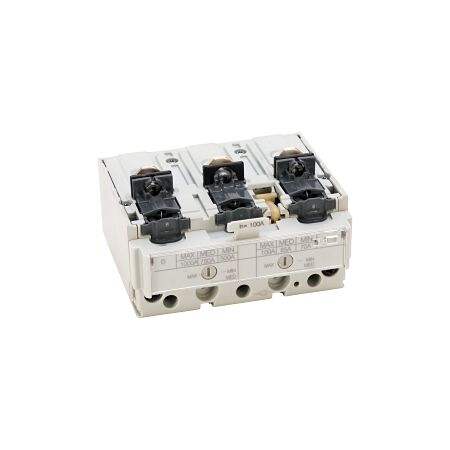

Allen-Bradley 140G MCCB H Frame Trip Unit 3P 100A Adjustable Thermal Magnetic

MCCB 3P 100A Adjustable Thermal Magnetic | 160A Frame | H Frame by NHP

BRAND: NHP

SKU: 140GHTF3D10

$141.70 List price: $188.20

+ −

30 Days Return Delivery Options

MCCB with adjustable thermal and magnetic trip settings, rated for 100A and 3 poles—ideal for industrial and commercial power distribution. Built for reliable circuit protection, with a 160A frame and compliance with AS/NZS 60898 standards.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 3P 100A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GHTF3D10

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 70-100 A
Instantaneous Protection Adjustment Range: 500-1000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40 to 80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 150mm x 200mm x 90mm
Weight: 2.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
Rated for 100A with a 3-pole configuration.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures, reducing energy waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame Trip Unit 3P 100A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable
