MCCB 3P 110A | 50kA Breaking Capacity | Fixed Thermal Magnetic by NHP
MCCB with 110A rated current and 50kA breaking capacity—ideal for industrial motor protection and commercial power distribution. Built for reliability, with fixed thermal and magnetic trip unit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

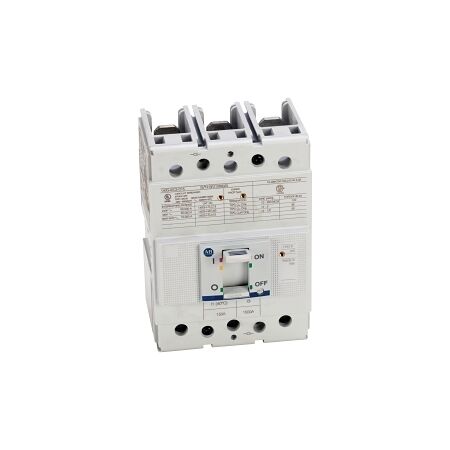

Product Name/Title: Allen-Bradley 140G MCCB I Frame 50kA 3P 110A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GI3C3D11
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 110A
Technical Specifications
- Rated Current: 110 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 25 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 225 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 6 kA
- Rated Short Circuit Breaking Capacity (ICS): 3 kA
- Rated Impulse Withstand Voltage: 8 kV
- Reverse Connection of Supply Possible: Yes
- Electrical Life at Un in Service Cycles: 8000 cycles
- Power Loss: 17.4 W
- DIN Rail Mounting Optional: Yes
- Mechanical Life Service Cycles: 25000 cycles
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 150mm x 101mm x 105mm
- Weight: 1.7 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 50 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection, power distribution
- Commercial: Electrical panels, machinery
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for high efficiency, reducing energy loss during operation.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB I Frame 50kA 3P 110A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
