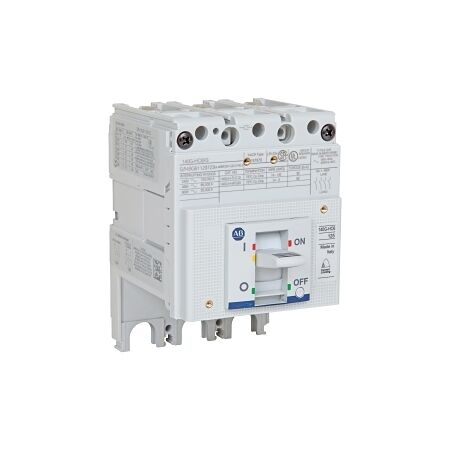

Allen-Bradley 140G MCCB H Frame 70kA 3P 110A Adjustable Thermal Magnetic

MCCB 3P 110A | 70kA Breaking Capacity | Adjustable Thermal Magnetic by NHP

BRAND: NHP

SKU: 140GH6F3D11

$859.30 List price: $1,141.10

+ −

30 Days Return Delivery Options

MCCB with 110A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for safety, with adjustable thermal and magnetic trip settings for customized protection.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 110A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GH6F3D11

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 110A

Technical Specifications

Rated Current: 110 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 77-110 A
Instantaneous Protection Adjustment Range: 550-1100 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 26.5 W
Rated Surrounding Temperature: 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 130mm x 116mm x 90mm
Weight: 1.2 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for enhanced safety.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reduced power loss.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame 70kA 3P 110A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

Non-Returnable & Non-Cancellable

140GH6F3D11-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH6F3D11-AU-140G-MCCB-H-Frame-Datasheet.pdf, 508 Kb) [Download]
