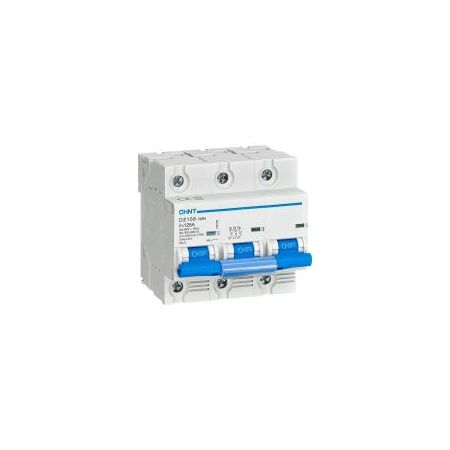

MCCB 3P 125A 10kA 125A Frame DZ158 Chint

BRAND: CABAC
SKU: 158109
$101.00 List price: $134.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint DZ158-125H MCCB 3P 125A features 10kA breaking capacity, 125A frame, and compact moulded case to IEC/EN 60947-2. Ideal for distribution panels.

Alternatively Known As: DZ158-125H 3P 125A 10kA Moulded Case Circuit Breaker, CHINT 158109 MCCB

Technical Specifications
  • Model: DZ158-125H
  • Poles: 3P
  • Rated Current: 125A
  • Rated Breaking Capacity: 10kA
  • Rated Working Voltage: 400/415V AC
  • Insulation Voltage: 500V
  • Rated Frequency: 50/60Hz
  • Impulse Withstand Voltage: 4kV
  • Thermo-magnetic Release Characteristic: 8-12 x In
  • Ingress Protection: IP20
  • Mounting: 35mm EN 60715 DIN rail
  • Product Code: 158109
  • Dimensions (H x L x W): 84.5mm x 78.5mm x 54mm
  • Weight: 0.9 kg
Key Features
  • Three-pole protection for three-phase distribution circuits
  • 10kA rated short-circuit breaking capacity
  • 125A frame and rated current
  • Thermo-magnetic overload and short-circuit protection
  • Compact moulded-case construction
  • Suitable for distribution panels and switchboards
  • Can be used as a manual isolating device when installed in accordance with applicable requirements
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with applicable Australian electrical installation requirements, manufacturer instructions and AS/NZS 3000.
Applications
  • Three-phase distribution panels
  • Commercial and industrial switchboards
  • Overload and short-circuit protection for low-voltage circuits
  • Electrical equipment and machinery feeders
  • OEM power distribution assemblies
Standards & Compliance
  • AS/NZS IEC 60947.2 for low-voltage circuit-breakers
Environmental Benefits
  • Durable protective switching device designed for extended service life
  • Helps limit damage to downstream electrical equipment during overloads and short circuits, reducing premature replacement
  • Metal and thermoplastic components may be recyclable at end of service life subject to local recycling facilities
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
