MCCB 3P 125A | 36kA Short Circuit | Fixed Thermal Magnetic | 690V by NHP
MCCB with 125A rated current and 36kA short circuit capacity—ideal for industrial and commercial power distribution. Built for reliable protection, with fixed thermal and magnetic trip unit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

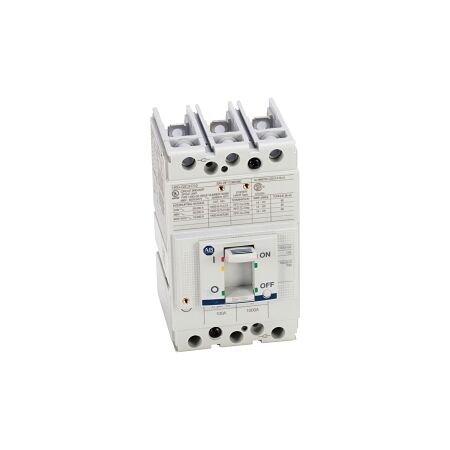

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 3P 125A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG2C3D12
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 125A
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 6 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 32.1 W
- Suitable for Isolation: Yes
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- Rated short circuit breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in electrical installations
- Commercial: Suitable for use in commercial buildings and facilities
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB G Frame 36kA 3P 125A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
