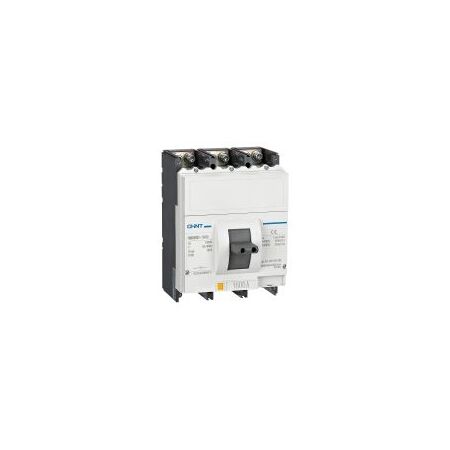

MCCB 3P 1600A NM8N Chint

BRAND: CABAC
SKU: 263173
$6,593.70 List price: $8,791.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N MCCB 3P 1600A features overload, short-circuit and undervoltage protection, and up to 690V AC rating. Ideal for main switchboards.

Alternatively Known As: CHINT NM8N MCCB, 3P MCCB, 1600A Circuit Breaker, Moulded Case Circuit Breaker

Technical Specifications
  • Product Type: Moulded case circuit breaker
  • Number of Poles: 3P
  • Rated Current: 1600A
  • Rated Voltage: Up to 690V AC
  • Protection Functions: Overload, short-circuit and undervoltage protection
  • Frame Size: 1600A
  • Release Options: Thermal-magnetic or electronic, depending on selected variant
  • Installation: Fixed mounting with vertical or horizontal orientation
  • Line Connection: Top or bottom line entry
  • Breaking Capacity: Variant-dependent; confirm the required B, C, S, Q, H or R code before selection
  • Applicable Product Standards: IEC 60947-1, IEC 60947-2, IEC 60947-3 and IEC 60947-4-1
  • Dimensions (H x L x W): 286mm x 167mm x 210mm
  • Weight: 13 kg
Key Features
  • Three-pole protection for high-current low-voltage distribution systems
  • 1600A frame size for main switchboard and industrial distribution applications
  • Provides overload and short-circuit protection
  • Undervoltage protection available for compatible configurations
  • Suitable for AC systems up to 690V
  • Supports vertical or horizontal mounting
  • Top or bottom line entry options
  • Available with thermal-magnetic or electronic release configurations
Professional Installation Requirements
  • Installation, connection and commissioning must be performed by a licensed electrical contractor in accordance with applicable Australian electrical regulations, manufacturer instructions and AS/NZS 3000. Protection settings and breaking capacity must be verified for the installation.
Applications
  • Main switchboards
  • Industrial power distribution boards
  • Commercial building electrical distribution
  • Data centre power distribution
  • Motor and equipment feeder protection
  • High-current low-voltage distribution systems
Standards & Compliance
  • AS/NZS IEC 60947.2:2015 for low-voltage circuit-breakers
  • Installation within Australia should comply with AS/NZS 3000
Environmental Benefits
  • Durable construction can extend service life and reduce replacement waste
  • Copper and other metallic components can be recovered through appropriate electrical equipment recycling
  • Supports safe and efficient power distribution when correctly selected and maintained
Warranty Information

CHINT’s general warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, unless a contract or local warranty arrangement states otherwise.

Available Now

Available through authorised CHINT distributors in Australia.
