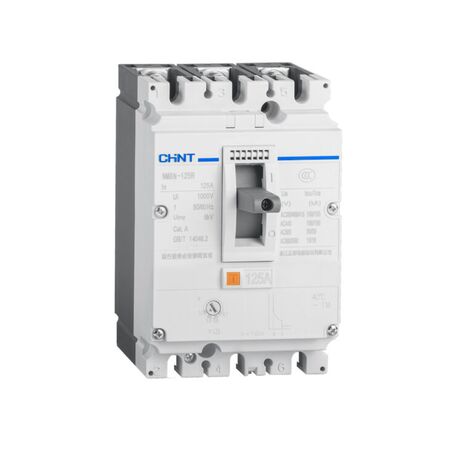

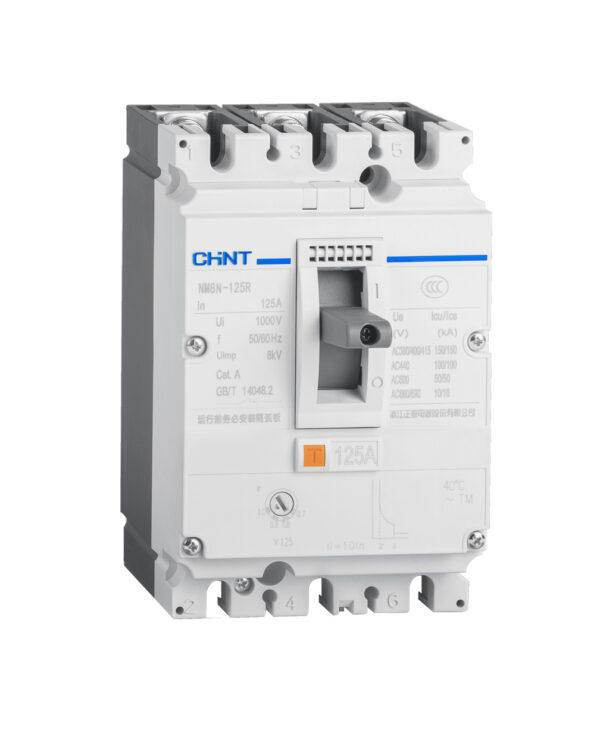

MCCB 3P 16A 150kA Magnetic Only 125A Frame NM8N Chint

BRAND: CABAC
SKU: 271871
$1,389.60 List price: $1,852.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 16A 3P MCCB features 150kA breaking capacity, magnetic-only trip unit for motor protection and a 125A frame. Ideal for switchboard mains protection.

Alternatively Known As: Magnetic-only moulded case circuit breaker, motor protection MCCB, 3-phase 16A MCCB

Technical Specifications
  • Product Type: Moulded case circuit breaker (MCCB)
  • Model: NM8N-125R M 16 3P
  • Rated Current: 16A
  • Number of Poles: 3P
  • Frame Size: 125A
  • Trip Unit: Magnetic-only electromagnetic release
  • Breaking Capacity: 150kA at 380–415VAC
  • Service Breaking Capacity: 100% of Icu at 380–415VAC
  • Rated Operational Voltage: 380–415VAC
  • Maximum Rated Voltage: 690VAC
  • Rated Insulation Voltage: 1,000V
  • Frequency: 50/60Hz
  • Operating Temperature: -40°C to +70°C
  • Ingress Protection: IP40
  • Connection: Screw terminals
  • Installation: Surface mounting with screw fixing
  • Mechanical Endurance: 15,000 operating cycles
  • Electrical Endurance: 8,000 operating cycles
  • Compatible Accessories: AX21-M8 auxiliary contact, AL21-M8 alarm contact, SHT21-M8 shunt release and UVT21-M8 undervoltage release
  • Dimensions (H x L x W): 140mm x 78.5mm x 90mm
  • Weight: 1.24 kg
Key Features
  • Three-pole MCCB for low-voltage AC distribution and motor circuits
  • Magnetic-only trip unit provides short-circuit protection without thermal overload protection
  • Very high 150kA short-circuit breaking capacity at 380–415VAC
  • 125A frame accommodates a compact 16A rated current configuration
  • Toggle handle operation with surface-mount screw fixing
  • Vertical or horizontal installation with top or bottom line entry
  • Compatible with optional auxiliary, alarm, shunt and undervoltage accessories
Professional Installation Requirements
  • Installation, selection and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable switchboard requirements. Magnetic-only protection does not provide thermal overload protection, so suitable motor overload protection may be required.
Applications
  • Motor short-circuit protection
  • Industrial control panels and motor control centres
  • High fault-level switchboards
  • Commercial and industrial low-voltage distribution
  • Electrical equipment isolation and circuit protection
Standards & Compliance
  • AS/NZS IEC 60947.2:2015 – Low-voltage switchgear and controlgear, Part 2: Circuit-breakers
Environmental Benefits
  • RoHS declaration available for the NM8N product series to restrict hazardous substances
  • Durable moulded-case construction can extend service life and reduce replacement waste
  • Metal components and thermoplastic housing materials may be separated for appropriate end-of-life recycling
Warranty Information

CHINT's general warranty policy covers other low-voltage apparatus for 27 months from the date of manufacture when purchased through authorised sales channels, subject to the applicable customer contract and warranty conditions.
