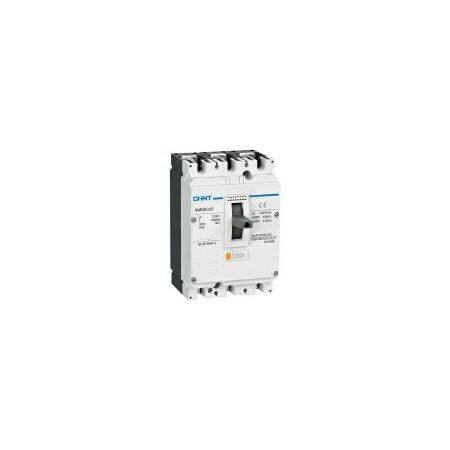

MCCB 3P 250A Frame NM8N Chint

BRAND: CABAC
SKU: 271502
$285.70 List price: $381.00
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N MCCB 3P 250A frame features overload, short-circuit and undervoltage protection, and up to 690V AC rating. Ideal for distribution switchboards.

Alternatively Known As: CHINT NM8N MCCB, 250A 3P MCCB, Three-Phase Moulded Case Circuit Breaker

Technical Specifications
  • Product Type: Moulded case circuit breaker
  • Frame Current: 250 A
  • Number of Poles: 3P
  • Rated Current Range: 63–250 A, configuration-dependent
  • Rated Voltage: Up to 690 V AC
  • DC Voltage Rating: Up to 1000 V DC
  • Protection: Overload and short-circuit protection
  • Undervoltage Protection: Available through compatible undervoltage release accessory or configuration
  • Release Options: Thermal-magnetic, electronic and magnetic release variants
  • Breaking Capacity: Configuration-dependent, up to 50 kA at AC 690 V
  • Utilisation Category: Category A
  • Connection: Fixed front or rear connection options
  • Mechanical Durability: Up to 15,000 operating cycles
  • Electrical Durability: Up to 1,500 operating cycles
  • Frequency: 50/60 Hz
  • Dimensions (H x L x W): 157mm x 105mm x 88.7mm
  • Weight: 1.85 kg
Key Features
  • Three-pole protection for three-phase distribution circuits
  • 250 A frame suitable for higher-current switchboard applications
  • Provides overload and short-circuit protection
  • Supports undervoltage protection with the appropriate release configuration
  • Rated for AC systems up to 690 V
  • Compatible with accessories including auxiliary contacts, shunt trips, undervoltage releases and operating mechanisms
  • Suitable for panel-mounted distribution switchboards and motor control applications
  • Available with front or rear connection arrangements
Professional Installation Requirements
  • Installation, selection of protection settings and connection should be performed by a licensed electrician in accordance with AS/NZS 3000, the switchboard manufacturer's requirements and the applicable circuit-breaker standard. Confirm the exact release, breaking-capacity and accessory configuration before installation.
Applications
  • Distribution switchboards
  • Commercial and industrial low-voltage electrical systems
  • Main and submain circuit protection
  • Motor control and protection assemblies
  • Data centre and building-services power distribution
  • Panel-mounted electrical equipment
Standards & Compliance
  • AS/NZS IEC 60947.2:2015 for low-voltage circuit-breakers
  • Installation should comply with AS/NZS 3000 and applicable low-voltage switchboard requirements
Environmental Benefits
  • Metal components can be recovered and recycled at end of service life through appropriate electrical equipment recycling processes
  • Long operating life and replaceable accessories can reduce premature equipment replacement and associated waste
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
