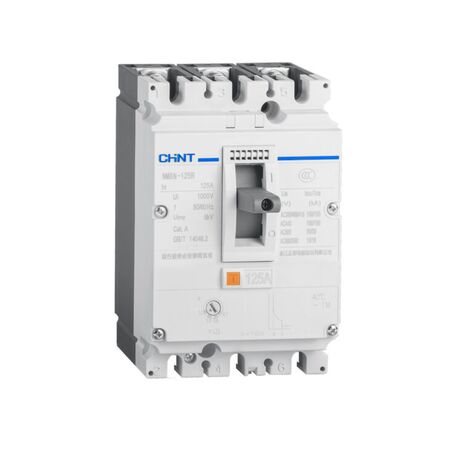

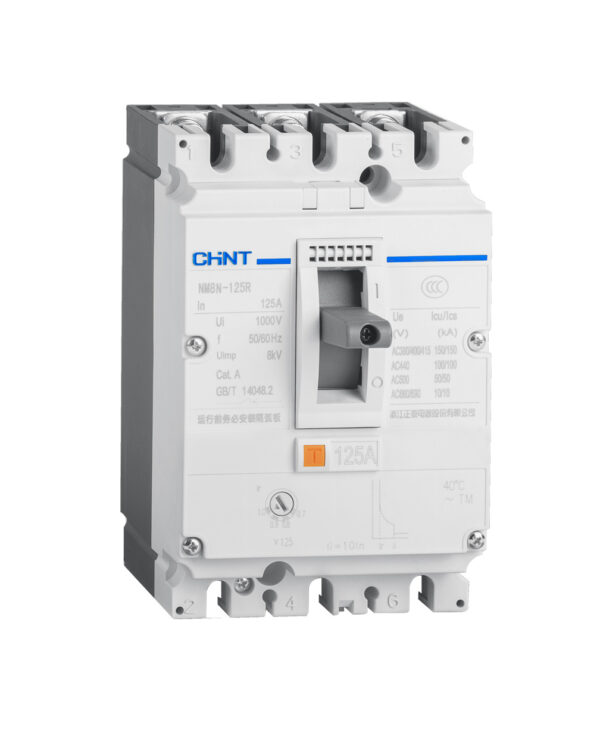

MCCB 3P 32A 150kA Magnetic Only 125A Frame NM8N Chint

BRAND: CABAC
SKU: 271874
$1,389.60 List price: $1,852.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 32A 3P MCCB features 150kA breaking capacity, magnetic-only trip unit for motor protection and a 125A frame. Ideal for switchboard mains protection.

Alternatively Known As: CHINT NM8N motor protection MCCB, 3-pole moulded case circuit breaker, magnetic trip MCCB

Technical Specifications
  • Rated Current: 32 A
  • Frame Size: 125 A
  • Number of Poles: 3P
  • Trip Unit: Magnetic-only, M type
  • Ultimate Breaking Capacity: 150 kA at 380/400/415 V AC
  • Rated Insulation Voltage Ui: 1,000 V
  • Rated Operational Voltage Ue: Up to 690 V AC
  • Rated Impulse Withstand Voltage Uimp: 8 kV
  • Frequency: 50/60 Hz
  • Utilisation Category: A
  • Mounting: Fixed, plug-in or DIN rail compatible depending on configuration
  • Mechanical Life: Up to 25,000 operating cycles
  • Electrical Life: Up to 10,000 operating cycles at 415 V AC and rated current
  • Standard Product Reference: IEC/EN 60947-2
  • Dimensions (H x L x W): 140mm x 78.5mm x 90mm
  • Weight: 1.19 kg
Key Features
  • Magnetic-only trip unit for short-circuit protection in motor circuits
  • 125A frame with a 32A rated current
  • 150kA ultimate short-circuit breaking capacity at 380/400/415V AC
  • Three-pole construction for three-phase systems
  • Suitable for motor protection applications when used with appropriate overload protection
  • Supports isolation functionality
  • Compact moulded-case construction for switchboard installation
  • Zero arcing distance design
Professional Installation Requirements
  • Installation, selection and connection should be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and the requirements of the complete motor protection system. A separate overload protection device is required because the magnetic-only trip unit does not provide thermal overload protection.
Applications
  • Motor protection circuits with separate overload relays
  • Industrial and commercial switchboards
  • Three-phase equipment protection
  • Main and sub-main switchboard protection where the available fault level requires high breaking capacity
  • Low-voltage power distribution systems
Standards & Compliance
  • AS/NZS IEC 60947.2:2015 for low-voltage circuit-breakers
Environmental Benefits
  • Moulded-case electrical components and metallic conductor parts can be separated and directed to appropriate recycling streams at end of service life
  • High breaking capacity and durable construction can help reduce equipment damage and replacement waste following short-circuit events
  • Long mechanical and electrical service life supports reduced replacement frequency
Warranty Information

Published CHINT NM8N instructions specify a warranty period of 24 months from the date of manufacture under normal storage and transport conditions, subject to applicable CHINT Australia and distributor terms.

Available Now

Available through authorised CHINT distributors in Australia.
