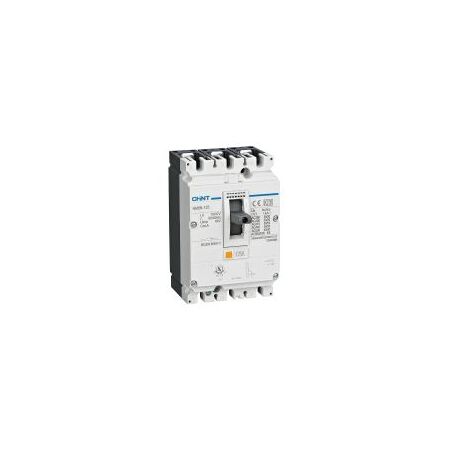

MCCB 3P 32A 36kA Thermal Magnetic 125A Frame NM8N Chint

BRAND: CABAC
SKU: 271534
$659.40 List price: $879.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 32A 3P MCCB features 36kA breaking capacity, thermal-magnetic trip unit and a 125A frame. Ideal for switchboard mains and sub-mains protection.

Alternatively Known As: CHINT NM8N 32A 3-pole moulded case circuit breaker, thermal-magnetic MCCB, 125A frame MCCB

Technical Specifications
  • Series: NM8N
  • Frame Size: 125A
  • Rated Current: 32A
  • Number of Poles: 3P
  • Release Type: Adjustable thermal-magnetic TM
  • Overload Adjustment Range: 22.4–32A
  • Breaking Capacity: 36kA, C code
  • Rated Operational Voltage: 380/415V AC
  • Maximum Rated Voltage: 690V AC
  • Frequency: 50/60Hz
  • Protection Class: IP40
  • Mechanical Durability: 15,000 operations
  • Electrical Durability: 8,000 operations
  • Dimensions (H x L x W): 140mm x 78.5mm x 90mm
  • Weight: 1.2 kg
Key Features
  • Thermal-magnetic protection against overload and short circuit
  • Three-pole configuration for three-phase distribution systems
  • 125A frame with 32A adjustable rated current
  • 36kA short-circuit breaking capacity
  • Suitable for fixed installation in switchboards and distribution assemblies
  • Top or bottom line connection options
  • Designed for low-voltage power distribution applications
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, manufacturer instructions and applicable electrical safety requirements.
Applications
  • Switchboard mains protection
  • Sub-main protection
  • Commercial and industrial distribution boards
  • Three-phase power distribution systems
  • Protection of cables and electrical equipment against overload and short circuit
Standards & Compliance
  • Applicable product standard: AS/NZS IEC 60947.2 for low-voltage circuit-breakers
  • Electrical installation and coordination requirements: AS/NZS 3000
Environmental Benefits
  • Long mechanical and electrical service life can reduce replacement frequency and product waste
  • Metal components and thermoplastic housing materials may be separated for recycling at end of service life
  • Thermal-magnetic protection helps prevent damage to downstream equipment and associated material waste
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable contract terms and exclusions.

Available Now

Available through authorised CHINT distributors in Australia.
