MCCB 3P 630A | 100kA Breaking Capacity | Electronic LSIG | NHP
MCCB with 630A rated current and 100kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic LSIG trip unit and integrated earth fault protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

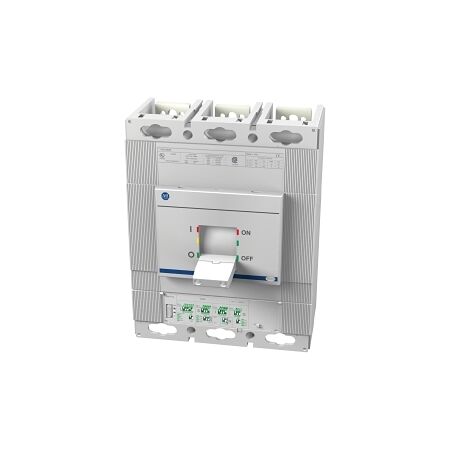

Product Name/Title: Allen-Bradley 140G MCCB M Frame 100kA 3P 630A Electronic LSIG
Brand: NHP
SKU: 140GM0I3D63
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Instantaneous Protection Adjustment Range: 945-7560 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 30 kA
- Rated Short Circuit Breaking Capacity (ICS): 22.5 kA
- Short Time Protection Adjustment Range: 378-6300 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 7000 cycles
- Mechanical Life: 20000 cycles
- Power Loss: 90 W
- Dimensions (H x L x W): 268mm x 159mm x 210mm
- Weight: 12.1 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- High short circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reduced energy loss.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Allen-Bradley 140G MCCB M Frame 100kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
