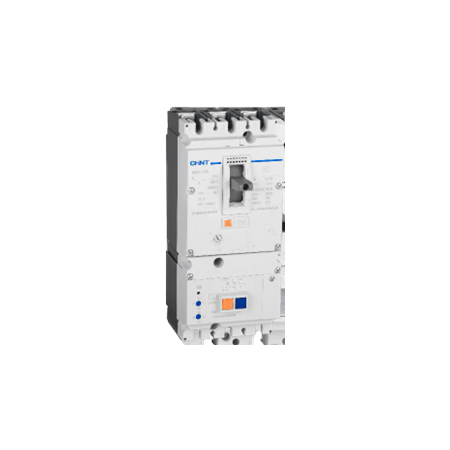

MCCB 3P 630A 50kA Standard Electronic 630A Frame NM8N Chint

BRAND: CABAC
SKU: 269476
$2,183.70 List price: $2,911.60
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 630A 3P MCCB features 50kA breaking capacity, standard electronic trip unit and a 630A frame. Ideal for switchboard mains and sub-mains protection.

Alternatively Known As: Moulded Case Circuit Breaker, 630A MCCB, 3-Phase MCCB, Electronic Trip MCCB, NM8N-630S EM

Technical Specifications
  • Product Type: Moulded case circuit breaker
  • Number of Poles: 3P
  • Frame Size: 630A
  • Rated Current: 630A at 40°C
  • Breaking Capacity: 50kA, S class
  • Trip Unit: Standard electronic EM release
  • Protection Functions: Long-time, short-time, instantaneous and earth-fault protection
  • Rated Operational Voltage: 380–415V AC
  • Frequency: 50/60Hz
  • Rated Service Breaking Capacity: 100% of Icu at applicable ratings
  • Installation: Fixed, surface-mounted screw connection
  • Connection Type: Screw terminals
  • Operating Temperature: -40°C to +70°C
  • Ingress Protection: IP40
  • Mechanical Durability: Up to 15,000 operating cycles
  • Electrical Durability: Up to 1,500 operating cycles
  • Reference Standard: IEC/EN 60947-2
  • Dimensions (H x L x W): 255mm x 113mm x 140mm
  • Weight: 5 kg
Key Features
  • 630A rated current with a 630A frame
  • 50kA short-circuit breaking capacity
  • Standard electronic trip unit with four-stage LSIG protection
  • Adjustable overload, short-circuit and earth-fault protection parameters
  • Real-time current display and protection status information
  • Suitable for main switchboard and sub-main protection
  • Three-pole configuration for three-phase distribution systems
  • Fixed mounting with front connection
  • Suitable for isolation
  • Compact 140mm-wide MCCB construction
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with applicable Australian electrical regulations, switchboard requirements and manufacturer instructions. Correct fault-current rating, cable sizing, discrimination and protection settings must be verified before energisation.
Applications
  • Main switchboard incomer protection
  • Sub-main and feeder protection
  • Commercial and industrial power distribution
  • Three-phase switchboard protection
  • Industrial plant and infrastructure electrical systems
  • Overload, short-circuit and earth-fault protection in low-voltage distribution networks
Standards & Compliance
  • Applicable MCCB standard: AS/NZS IEC 60947.2:2015; confirm the specific Australian conformity and RCM requirements for the supplied product and switchboard assembly before installation
Environmental Benefits
  • Electronic protection and adjustable trip settings can support accurate fault clearing and reduce unnecessary equipment replacement
  • Long mechanical and electrical service life can reduce replacement frequency and associated waste
  • Metallic components can be separated for recycling at end of service life
  • NM8N series documentation includes RoHS-related product declarations
Warranty Information

CHINT warranty policy states 27 months from the date of manufacture for other low-voltage apparatus, including MCCBs, when purchased through authorised sales channels. Contractual terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
