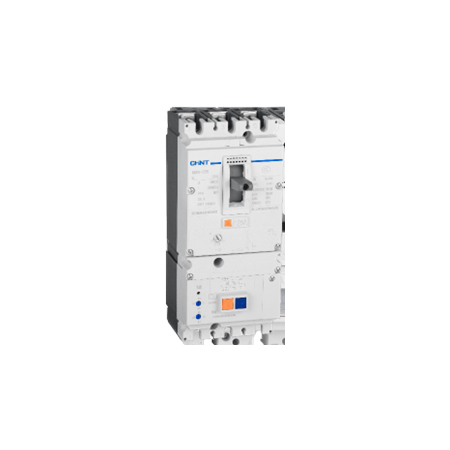

MCCB 3P 630A 70kA Standard Electronic 630A Frame NM8N Chint

BRAND: CABAC
SKU: 269482
$2,845.40 List price: $3,793.90
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 630A 3P MCCB features 70kA breaking capacity, standard electronic trip unit and a 630A frame. Ideal for switchboard mains and sub-mains protection.

Alternatively Known As: CHINT NM8N-630Q EM MCCB, 630A Moulded Case Circuit Breaker, 3-Phase Electronic MCCB

Technical Specifications
  • Product Type: Moulded case circuit breaker
  • Poles: 3P
  • Frame Rating: 630A
  • Rated Current: 630A
  • Electronic Trip Adjustment: 0.4–1.0 x In
  • Breaking Capacity: 70kA at 380/400/415/440VAC
  • Rated Operational Voltage: Up to 690VAC
  • Rated Frequency: 50/60Hz
  • Rated Insulation Voltage: 1000V
  • Rated Impulse Withstand Voltage: 12kV
  • Utilisation Category: A
  • Mounting: Fixed, front connection
  • Trip Functions: Long-time overload, short-time short-circuit and instantaneous short-circuit protection
  • Dimensions (H x L x W): 255mm x 113mm x 140mm
  • Weight: 6 kg
Key Features
  • 70kA ultimate short-circuit breaking capacity at common low-voltage system voltages
  • 630A frame with 630A rated current
  • Three-pole configuration for three-phase distribution systems
  • Standard electronic trip unit with adjustable current settings
  • Suitable for switchboard mains and sub-mains protection
  • Supports electrical isolation and coordinated circuit protection
  • Compatible with optional shunt release, motor mechanism, rotary handle, terminal shrouds and mechanical interlock accessories
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician or suitably qualified electrical contractor. Select settings and protective coordination in accordance with the switchboard design, fault-level calculations, manufacturer instructions and applicable Australian wiring requirements.
Applications
  • Main incomer protection in commercial and industrial switchboards
  • Sub-main protection in low-voltage distribution systems
  • Three-phase feeder protection
  • Industrial plant and machinery distribution boards
  • Protection of cables, busbars and downstream electrical equipment
Standards & Compliance
  • AS/NZS 60947.2 is the applicable Australian/New Zealand product standard for low-voltage circuit-breakers; verify the specific product approval and RCM requirements before installation
  • Electrical installation and switchboard integration should comply with AS/NZS 3000 and applicable switchboard requirements
Environmental Benefits
  • Durable moulded-case construction supports extended service life and reduces replacement waste
  • Provides coordinated overload and short-circuit protection that can help prevent damage to downstream electrical equipment
  • Metallic components and thermoplastics may be recoverable through appropriate electrical equipment recycling streams
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus when purchased through authorised sales channels, subject to contract terms and exclusions for improper installation, misuse or unauthorised modification.

Available Now

Available through authorised CHINT distributors in Australia.
