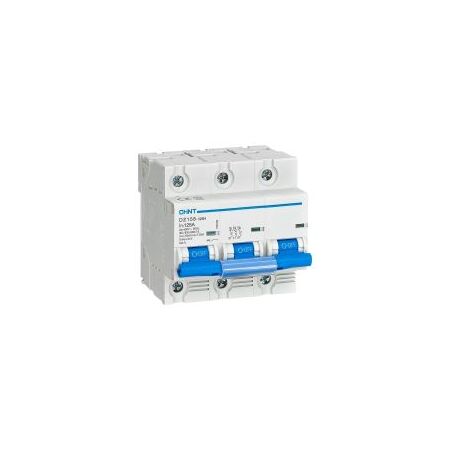

MCCB 3P 63A 10kA 125A Frame DZ158 Chint

BRAND: CABAC
SKU: 158094
$72.10 List price: $96.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint DZ158-125H MCCB 3P 63A features 10kA breaking capacity, 125A frame, and compact moulded case to IEC/EN 60947-2. Ideal for distribution panels.

Alternatively Known As: CHINT DZ158-125H MCCB, 3-Phase Circuit Breaker, Thermal-Magnetic Circuit Breaker, DIN-Rail MCCB

Technical Specifications
  • Series: DZ158-125H
  • Configuration: 3-pole, three-phase
  • Rated Current: 63 A
  • Frame Rating: 125 A
  • Rated Breaking Capacity: 10 kA
  • Rated Voltage: 400/415 V AC
  • Rated Insulation Voltage: 500 V
  • Rated Frequency: 50/60 Hz
  • Thermal-Magnetic Release: 8–12 x In
  • Impulse Withstand Voltage: 4 kV
  • Protection Degree: IP20
  • Mounting: 35 mm EN 60715 DIN rail
  • Terminal Capacity: 16–50 mm²
  • Terminal Tightening Torque: 3.5 N·m
  • Electrical Life: 1,500 operations
  • Mechanical Life: 8,500 operations
  • Product Code: 158094
  • Dimensions (H x L x W): 84.5mm x 78.5mm x 81mm
  • Weight: 0.48 kg
Key Features
  • Three-pole circuit protection for distribution circuits
  • 10 kA rated short-circuit breaking capacity
  • 125 A frame with 63 A rated current
  • Thermal-magnetic overload and short-circuit protection
  • Compact modular design occupying 4.5 DIN modules
  • Line connection possible from the top or bottom
  • Compatible with AX-1 auxiliary contacts, MX shunt trip and MN undervoltage accessories
  • Suitable for distribution panels and commercial or industrial electrical installations
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations.
Applications
  • Distribution boards and switchboards
  • Commercial and industrial power distribution
  • Protection of three-phase feeder circuits
  • OEM electrical panels and control assemblies
  • Overload and short-circuit protection for downstream equipment
Standards & Compliance
  • IEC/EN 60947-2 product standard
  • AS/NZS IEC 60947.2:2015 is the applicable Australian/New Zealand circuit-breaker standard; confirm required Australian certification and RCM requirements before installation
Environmental Benefits
  • RoHS documentation is available for the DZ158 series
  • Long mechanical and electrical service life can reduce replacement frequency and material waste
  • Moulded thermoplastic components and copper conductors can be separated for appropriate end-of-life recycling
  • Supports efficient electrical distribution by reducing damage caused by overloads and short circuits
Warranty Information

CHINT warranty policy covers other low-voltage apparatus for 27 months from the date of manufacture when purchased through authorised sales channels, subject to contract terms and exclusions for improper installation, misuse or unauthorised modification.
