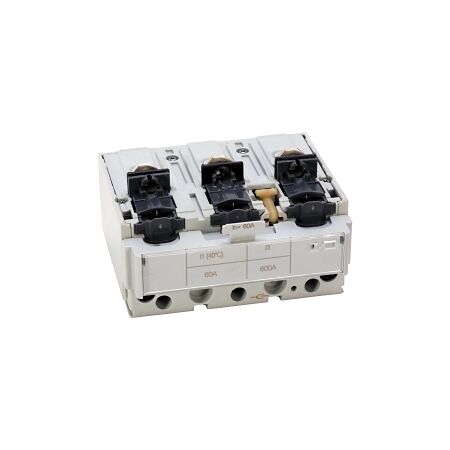

Allen-Bradley 140G MCCB H Frame Trip Unit 3P 63A Fixed Thermal Magnetic

MCCB 3P 63A Fixed Thermal Magnetic | 160A Frame | Compact Design by NHP

BRAND: NHP

SKU: 140GHTC3C63

$79.00 List price: $104.90

+ −

30 Days Return Delivery Options

MCCB with 63A rated current and 3-pole configuration—ideal for industrial and commercial power distribution. Built for reliable protection, with fixed thermal and magnetic trip unit and compact design.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 3P 63A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GHTC3C63

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 63 A
Number of Poles: 3
Type of Protection: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Frame Size Rating: 160 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40 to 80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 120mm x 150mm x 90mm
Weight: 1.5 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
Rated current of 63 A with a 3-pole configuration.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures, reducing energy waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame Trip Unit 3P 63A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

140GHTC3C63-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GHTC3C63-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 267 Kb) [Download]
