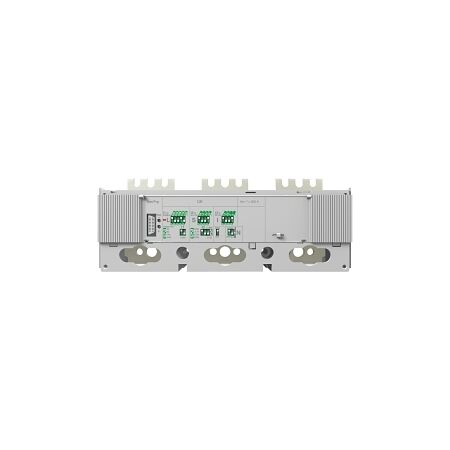

Allen-Bradley 140G MCCB M Frame Trip Unit 3P 800A Electronic LSIG

MCCB 3P 800A Electronic LSIG | 140G M Frame | Precise Trip Settings by NHP

BRAND: NHP

SKU: 140GMTI3D80

$3,387.90 List price: $4,498.70

+ −

30 Days Return Delivery Options

MCCB with 800A rated current and electronic LSIG protection—ideal for industrial and commercial power distribution. Built for precise trip settings, with professional installation recommended for optimal safety.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame Trip Unit 3P 800A Electronic LSIG

Brand: NHP

SKU: 140GMTI3D80

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 800A

Technical Specifications

Rated Current: 800 A
Number of Poles: 3
Type of Protection: Electronic release
Trip Curve: LSIG
Long Time Overload Protection Adjustment: 320-800 A
Instantaneous Protection Adjustment: 1200-8400 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment: 480-8000 A
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 300mm x 150mm x 210mm
Weight: 10 kg

Key Features

Electronic release for precise trip settings.
LSIG trip curve for comprehensive protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Designed to operate efficiently, reducing energy waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame Trip Unit 3P 800A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

140GMTI3D80-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GMTI3D80-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 187 Kb) [Download]
