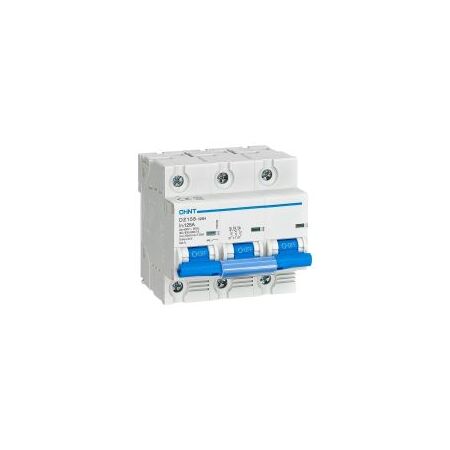

MCCB 3P 80A 10kA 125A Frame DZ158 Chint

BRAND: CABAC
SKU: 158095
$86.50 List price: $115.40
+ −
30 Days Return Electricians Unlock Trade Access
Chint DZ158-125H MCCB 3P 80A features 10kA breaking capacity, 125A frame, and compact moulded case to IEC/EN 60947-2. Ideal for distribution panels.

Alternatively Known As: DZ158-125H 3P 80A 10kA moulded case circuit breaker, CHINT 158095, 125AF MCCB

Technical Specifications
  • Rated Current: 80 A
  • Number of Poles: 3P
  • Frame Rating: 125 A
  • Rated Working Voltage: 400/415 V AC
  • Rated Insulation Voltage: 500 V
  • Rated Frequency: 50/60 Hz
  • Breaking Capacity: 10 kA
  • Thermal-Magnetic Trip Range: 8–12 x In
  • Terminal Capacity: 16–50 mm²
  • Tightening Torque: 3.5 N·m
  • Protection Degree: IP20
  • Pollution Degree: 3
  • Rated Impulse Withstand Voltage: 4 kV
  • Electrical Endurance: 1,500 cycles
  • Mechanical Endurance: 8,500 cycles
  • Mounting: 35 mm DIN rail with fast-clip device
  • Standard: IEC/EN 60947-2
  • Dimensions (H x L x W): 84.5mm x 78.5mm x 81mm
  • Weight: 0.9 kg
Key Features
  • Three-pole protection for three-phase circuits
  • 10 kA rated short-circuit breaking capacity
  • 125 A frame with an 80 A fixed thermal-magnetic trip rating
  • Suitable for overload and short-circuit protection
  • Compact modular moulded-case construction
  • DIN rail mounting for distribution boards and panels
  • Line connection possible from the top or bottom
  • Visible contact position indicator
  • Compatible with auxiliary contact accessories
  • Operating ambient temperature from -5°C to +40°C, with daily average not exceeding 35°C
Professional Installation Requirements
  • Installation, selection and testing must be completed by a licensed electrician in accordance with AS/NZS 3000, applicable switchboard requirements and the manufacturer's installation instructions. Verify fault levels, cable sizing, discrimination and enclosure suitability before energising.
Applications
  • Three-phase distribution panels
  • Commercial and industrial switchboards
  • Overload protection for feeder circuits
  • Short-circuit protection for submains and distribution circuits
  • Electrical equipment and machinery power distribution
Standards & Compliance
  • Designed to IEC/EN 60947-2 for low-voltage circuit-breakers
  • Applicable Australian/New Zealand product standard: AS/NZS IEC 60947.2:2015
  • Installation within electrical installations should comply with AS/NZS 3000
Environmental Benefits
  • RoHS documentation is available for the DZ158 series, supporting restriction of hazardous substances in the product
  • Long mechanical and electrical endurance can reduce replacement frequency and associated waste
  • Moulded electrical components and metal terminals can be separated for appropriate end-of-life recycling where local facilities accept them
