MCCB 3P 80A Adjustable | 70kA Breaking Capacity | Thermal Magnetic by NHP
MCCB with 80A adjustable thermal and magnetic trip settings—ideal for industrial and commercial power distribution. Built for high breaking capacity of 70kA, ensuring reliable short circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

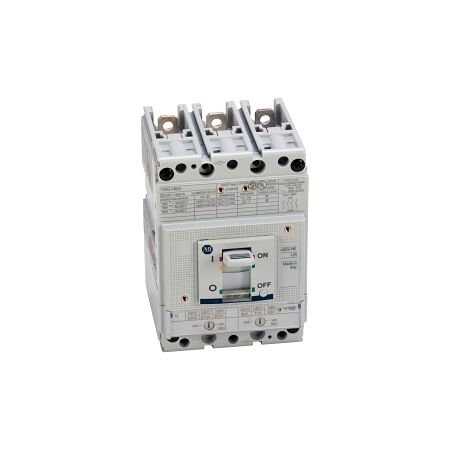

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 80A Adjustable Thermal Magnetic
Brand: NHP
SKU: 140GH6F3C80
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 80A
Technical Specifications
- Rated Current: 80 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 56-80 A
- Instantaneous Protection Adjustment Range: 400-800 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 15 kA
- Rated Short Circuit Breaking Capacity (ICS): 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 17.4 W
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 70 kA for reliable short circuit protection.
- Suitable for isolation and can handle reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in electrical systems
- Commercial: Suitable for various commercial electrical installations
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB H Frame 70kA 3P 80A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
Non-Returnable & Non-Cancellable
